AD7171BCPZ-500RL7 - Analog Devices

Description: Analog Devices, AD7171BCPZ-500RL7 Analog Devices AD7171BCPZ-500RL7, 16 bit Serial ADC,, 10-Pin LFCSP WD

Download AD7171BCPZ-500RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

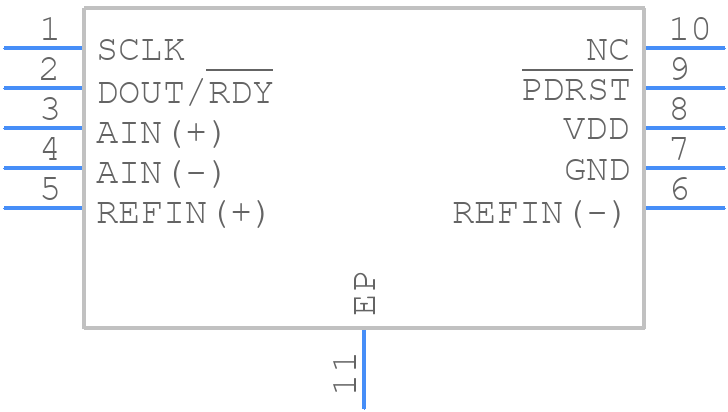

Symbol
AD7171BCPZ-500RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7171BCPZ-500RL7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-10-9 (LFCSP)
click to zoom
3D Models
AD7171BCPZ-500RL7 - Analog Devices - 3D model - Small Outline No-lead - CP-10-9 (LFCSP)
click to zoom

AD7171BCPZ-500RL7 Details

  • Manufacturer Part Number:

    AD7171BCPZ-500RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, LFCSP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    CP-10-9

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5 V

  • Analog Input Voltage-Min:

    -5 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0061%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.125 MHz

  • Seated Height-Max:

    0.85 mm

  • Supply Current-Max:

    0.15 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD7171BCPZ-500RL7 Frequently Asked Questions (FAQs)

  • The AD7171BCPZ-500RL7 requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources.
  • To optimize the AD7171BCPZ-500RL7's performance for your specific application, you should consider factors such as the input signal range, sampling rate, and filter settings. You can use the device's built-in calibration and diagnostic features to optimize its performance. Additionally, you can use the ADI's evaluation board and software development tools to evaluate and optimize the device's performance.
  • The AD7171BCPZ-500RL7 requires a stable power supply to ensure reliable operation. Key considerations for powering the device include using a low-noise power supply, decoupling the power supply lines, and ensuring that the power supply voltage is within the recommended range. Additionally, it is recommended to use a power-on reset circuit to ensure that the device is properly reset during power-up.
  • The AD7171BCPZ-500RL7 can be interfaced with a microcontroller or digital signal processor using a serial peripheral interface (SPI) or inter-integrated circuit (I2C) interface. The device's digital interface is compatible with most microcontrollers and digital signal processors, and the ADI provides software development tools and example code to facilitate the interface.
  • The AD7171BCPZ-500RL7 is a high-performance analog-to-digital converter that can generate heat during operation. To ensure reliable operation over temperature, it is recommended to provide adequate thermal management, including using a heat sink or thermal pad, and ensuring good airflow around the device. The device's junction temperature should be kept below the recommended maximum temperature to ensure reliable operation.
