AD7171BCPZ-REEL7 - Analog Devices

Description: Analog to Digital Converters - ADC 1CHANNEL L/POWER 12-BIT SD GAIN 128 IC

Download AD7171BCPZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

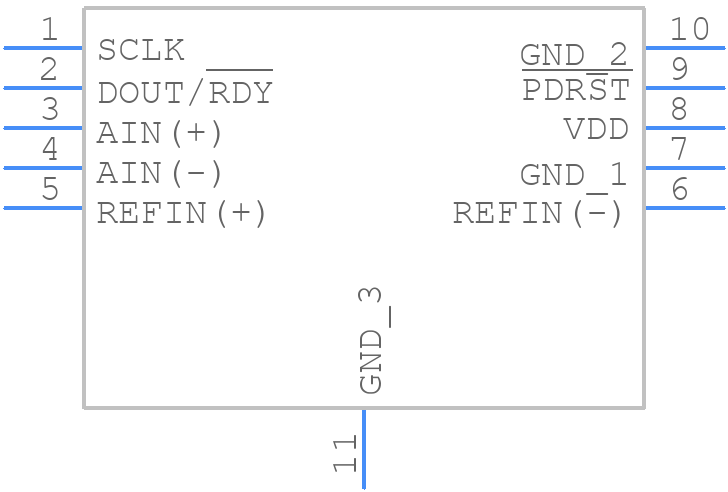

AD7171BCPZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7171BCPZ-REEL7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - (CP-10-9)
click to zoom
3D Models
AD7171BCPZ-REEL7 - Analog Devices - 3D model - Small Outline No-lead - (CP-10-9)
click to zoom

AD7171BCPZ-REEL7 Details

  • Manufacturer Part Number:

    AD7171BCPZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, LFCSP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    CP-10-9

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5 V

  • Analog Input Voltage-Min:

    -5 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0061%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.125 MHz

  • Seated Height-Max:

    0.85 mm

  • Supply Current-Max:

    0.15 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD7171BCPZ-REEL7 Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the AD7171BCPZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane and to keep the digital signals away from the analog signals.
  • To optimize the performance of the AD7171BCPZ-REEL7 in noisy environments, use a low-pass filter at the input, use a shielded cable for the analog input, and consider using a common-mode filter. Additionally, ensure that the device is properly grounded and that the power supply is clean and well-regulated.
  • The maximum sampling rate of the AD7171BCPZ-REEL7 is 250 kSPS. However, the actual sampling rate may be limited by the system's clock frequency, the input signal's bandwidth, and the device's settling time.
  • The AD7171BCPZ-REEL7 has an internal calibration mechanism that can be initiated through the SPI interface. The device can be calibrated for offset and gain errors. The calibration process involves applying a known input voltage and then reading the output code to determine the offset and gain errors.
  • The power consumption of the AD7171BCPZ-REEL7 depends on the operating mode and the sampling rate. In normal mode, the device consumes around 15 mW at 250 kSPS. In low-power mode, the device consumes around 5 mW at 10 kSPS.
