AD7172-2BRUZ - Analog Devices

Description: ANALOG DEVICES - AD7172-2BRUZ - Analogue to Digital Converter, 24 bit, 31.25 kSPS, Differential, Single Ended, SPI, Dual (+/-), 2 V

Download AD7172-2BRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

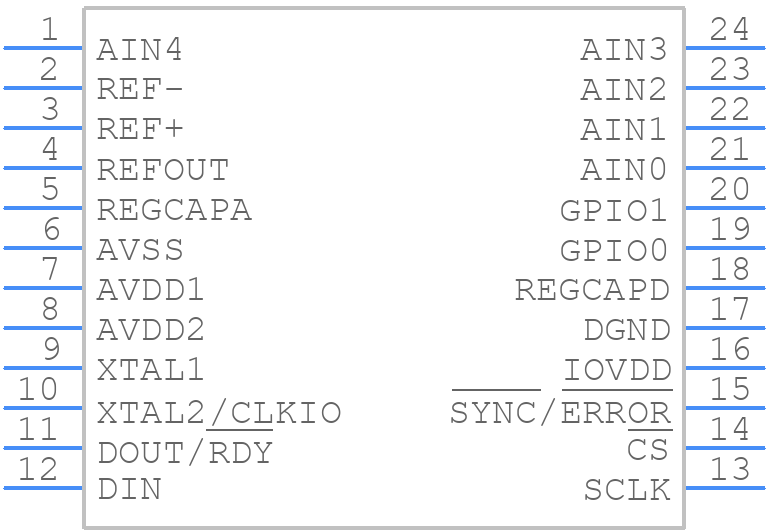

AD7172-2BRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7172-2BRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 24-Lead Thin Shrink Small Outline Package [TSSOP] (RU-24)
click to zoom
3D Models
AD7172-2BRUZ - Analog Devices - 3D model - Small Outline Packages - 24-Lead Thin Shrink Small Outline Package [TSSOP] (RU-24)
click to zoom

AD7172-2BRUZ Details

  • Manufacturer Part Number:

    AD7172-2BRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, MO-153AD, TSSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RU-24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.5 V

  • Analog Input Voltage-Min:

    -2.5 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G24

  • Length:

    7.8 mm

  • Linearity Error-Max (EL):

    0.0005%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    4

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.03125 MHz

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    1.1 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7172-2BRUZ Frequently Asked Questions (FAQs)

  • The AD7172-2BRUZ requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to place the device close to the analog signal sources, use a solid ground plane, and keep the analog and digital signals separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
  • To optimize the AD7172-2BRUZ's performance for low-noise applications, it is recommended to use a low-noise voltage reference, minimize the input impedance, and use a high-precision clock source. Additionally, the device's noise reduction features, such as the noise filter and the PGA, can be used to further reduce noise.
  • The maximum sampling rate of the AD7172-2BRUZ is 250 kSPS. However, the actual sampling rate may be limited by the system's clock frequency, the input signal's bandwidth, and the device's settling time.
  • The AD7172-2BRUZ has an internal calibration feature that can be used to calibrate the device. The calibration process involves applying a known input voltage and adjusting the device's internal registers to achieve the desired accuracy. The calibration process can be performed using the device's SPI interface.
  • The power consumption of the AD7172-2BRUZ depends on the device's operating mode, sampling rate, and voltage supply. In normal operation, the device's power consumption is typically around 15 mW. However, in power-down mode, the power consumption can be reduced to as low as 10 μW.
