AD7172-4BCPZ-RL - Analog Devices

Description: Octal Channel Single ADC Delta-Sigma 31.25ksps 24-bit Serial Medical 32-Pin LFCSP EP T/R

Download AD7172-4BCPZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

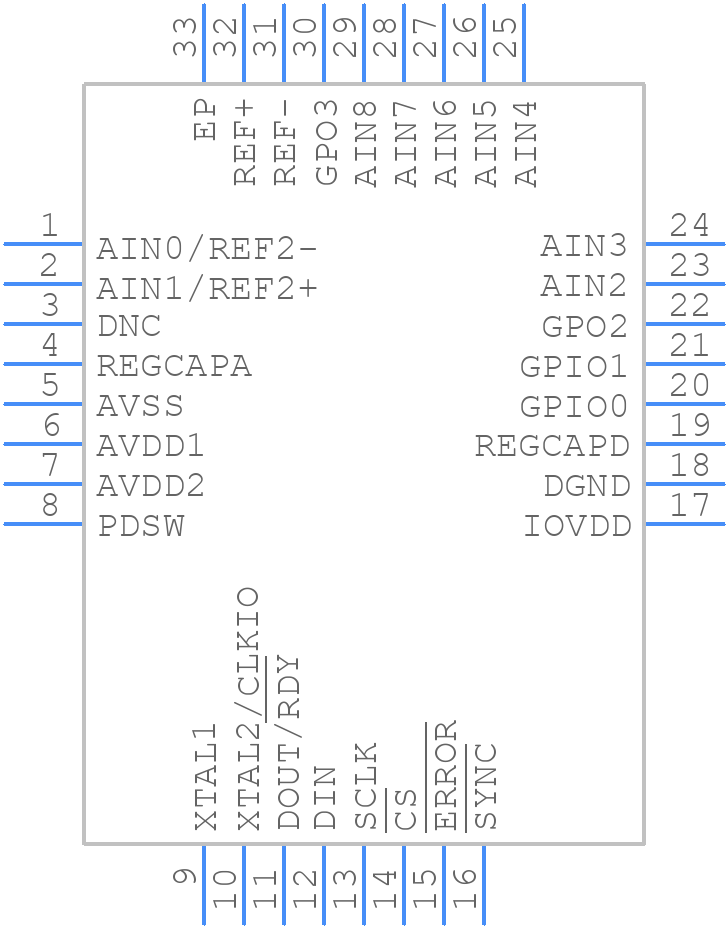

AD7172-4BCPZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7172-4BCPZ-RL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-12_2022
click to zoom
3D Models
AD7172-4BCPZ-RL - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-12_2022
click to zoom

AD7172-4BCPZ-RL Details

  • Manufacturer Part Number:

    AD7172-4BCPZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-12

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.5 V

  • Analog Input Voltage-Min:

    1 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.00052%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    4

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    2.15 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

AD7172-4BCPZ-RL Frequently Asked Questions (FAQs)

  • The AD7172-4BCPZ-RL is a sensitive analog device, and proper layout and placement are crucial for optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources.
  • To optimize the performance of the AD7172-4BCPZ-RL in noisy environments, it is recommended to use proper shielding, filtering, and grounding techniques. Additionally, the device's built-in features such as the programmable gain amplifier and the digital filter can be used to reject noise and improve signal-to-noise ratio.
  • The maximum sampling rate of the AD7172-4BCPZ-RL is 250 kSPS, but this can be affected by the device's settling time, the input signal bandwidth, and the system clock frequency. It is recommended to consult the datasheet and application notes for more information on achieving the maximum sampling rate.
  • The AD7172-4BCPZ-RL has a built-in calibration feature that can be used to optimize its performance. The device can be calibrated for offset, gain, and linearity using the CAL pin and the corresponding calibration registers. It is recommended to consult the datasheet and application notes for more information on the calibration procedure.
  • The power consumption of the AD7172-4BCPZ-RL is typically around 15 mW, but this can vary depending on the device's operating mode, sampling rate, and input signal level. To minimize power consumption, it is recommended to use the device's power-down mode, reduce the sampling rate, and optimize the input signal level.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7172-4BCPZ-RL Overview

Use the download button to access the AD7172-4BCPZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD717, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
