AD7172-4BCPZ - Analog Devices

Description: ANALOG DEVICES - AD7172-4BCPZ - Analogue to Digital Converter, Sigma-Delta, 24 bit, 31.25 kSPS, Differential, Single Ended, SPI

Download AD7172-4BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

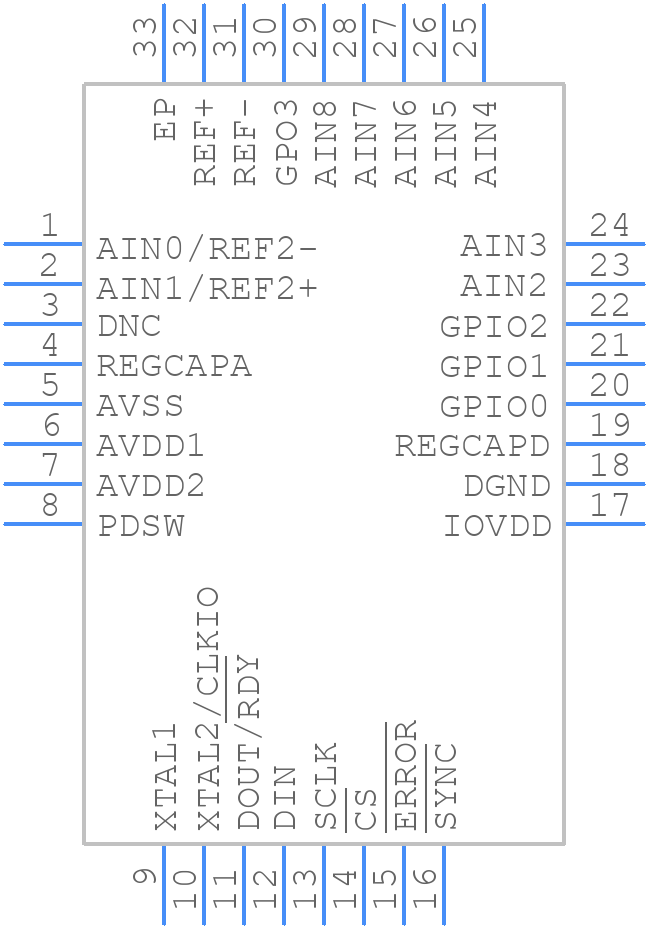

AD7172-4BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7172-4BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - AD7172-4BCPZ
click to zoom
3D Models
AD7172-4BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - AD7172-4BCPZ
click to zoom

AD7172-4BCPZ Details

  • Manufacturer Part Number:

    AD7172-4BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-12

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.5 V

  • Analog Input Voltage-Min:

    1 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.00052%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    4

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    2.15 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

AD7172-4BCPZ Frequently Asked Questions (FAQs)

  • The AD7172-4BCPZ requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources.
  • To optimize the AD7172-4BCPZ's performance for your specific application, you should consider factors such as the input signal range, sampling rate, and noise requirements. You can use the device's built-in calibration and offset correction features to improve accuracy, and adjust the gain and filtering settings to optimize performance for your specific use case.
  • The AD7172-4BCPZ's analog-to-digital conversion has limitations such as nonlinearity, noise, and distortion. To mitigate these limitations, you can use techniques such as oversampling, averaging, and digital filtering to improve accuracy and reduce noise. Additionally, you can use the device's built-in error correction features to compensate for nonlinearity and other errors.
  • The AD7172-4BCPZ can be interfaced with a microcontroller or other digital system using a serial peripheral interface (SPI) or inter-integrated circuit (I2C) bus. You will need to configure the interface mode and clock frequency according to the device's datasheet and your system's requirements. You may also need to use level shifters or buffers to match the voltage levels and signal requirements of the AD7172-4BCPZ and your digital system.
  • The AD7172-4BCPZ requires a single 5V power supply, and it is recommended to use a low-noise, low-dropout regulator to ensure reliable operation. You should also ensure that the power supply is decoupled with capacitors and that the device is operated within its recommended operating temperature range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7172-4BCPZ Overview

Use the download button to access the AD7172-4BCPZ schematic symbol, PCB footprint, and 3D model.
