AD7177-2BRUZ-RL7 - Analog Devices

Description: 4-Channel Single ADC Delta-Sigma 10ksps 32-bit Serial Medical 24-Pin TSSOP T/R

Download AD7177-2BRUZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

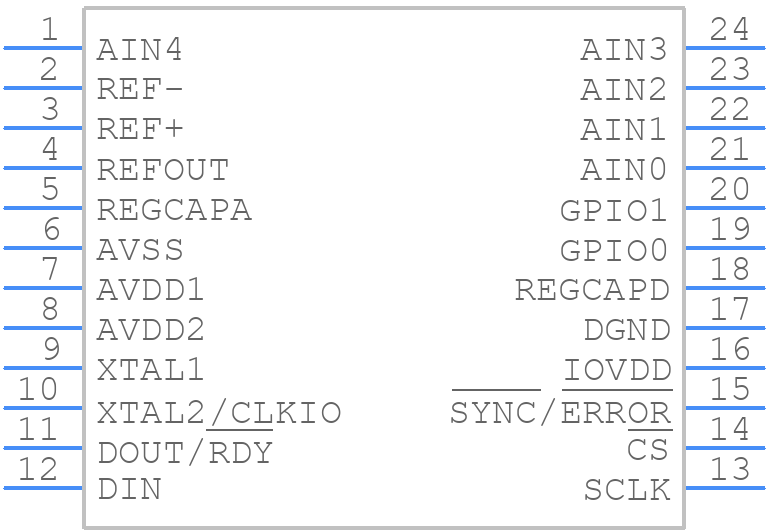

AD7177-2BRUZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7177-2BRUZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-24 (TSSOP)
click to zoom
3D Models
AD7177-2BRUZ-RL7 - Analog Devices - 3D model - Small Outline Packages - RU-24 (TSSOP)
click to zoom

AD7177-2BRUZ-RL7 Details

  • Manufacturer Part Number:

    AD7177-2BRUZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RU-24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    2.5 V

  • Analog Input Voltage-Min:

    -2.5 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    7.8 mm

  • Linearity Error-Max (EL):

    7.8%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    2

  • Number of Bits:

    32

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.01 MHz

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    5.2 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7177-2BRUZ-RL7 Frequently Asked Questions (FAQs)

  • The AD7177-2BRUZ-RL7 requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources.
  • To optimize the AD7177-2BRUZ-RL7's performance for your specific application, you should consider factors such as the input signal range, sampling rate, and noise tolerance. You may need to adjust the gain, offset, and filtering settings to achieve the desired performance. Additionally, you can use the device's built-in calibration and diagnostic features to fine-tune its performance.
  • The AD7177-2BRUZ-RL7 is rated for operation up to 125°C, but its performance may degrade at high temperatures. You should consider the device's temperature coefficient and ensure that your design takes into account the potential for reduced accuracy and increased noise at high temperatures.
  • To ensure the AD7177-2BRUZ-RL7's accuracy and linearity over time, you should consider implementing a calibration routine that accounts for factors such as temperature drift, aging, and component tolerances. You can use the device's built-in calibration features and external calibration sources to maintain its accuracy and linearity.
  • The AD7177-2BRUZ-RL7 can be susceptible to noise and interference from sources such as electromagnetic interference (EMI), radio-frequency interference (RFI), and power supply noise. To mitigate these effects, you can use techniques such as shielding, filtering, and grounding, as well as ensuring that the device is properly decoupled and bypassed.
