- Part Number AD7193BCPZ-RL
- Manufacturer Analog Devices
- Pin Count 33
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - CP-32-12-1
- Released Date Jan 11, 2017
- Last Modified Date May 7, 2025 11:33 AM UTC
- Pinout / Pin List Click Here (Member Only)
AD7193BCPZ-RL Details
-
Manufacturer Part Number:
AD7193BCPZ-RL
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
QFN
-
Package Description:
LFCSP-32
-
Pin Count:
32
-
Manufacturer Package Code:
CP-32-12
-
Country Of Origin:
South Korea
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
AD7193BCPZ-RL Frequently Asked Questions (FAQs)
-
The AD7193BCPZ-RL is a high-precision ADC, and its performance can be affected by the PCB layout and component placement. It is recommended to follow a star-grounding scheme, keep analog and digital grounds separate, and place the ADC close to the analog signal sources. Additionally, decoupling capacitors should be placed close to the ADC's power pins.
-
To optimize the AD7193BCPZ-RL's performance, it is essential to understand the application's requirements and adjust the ADC's settings accordingly. This includes selecting the correct gain, offset, and filter settings, as well as optimizing the clock frequency and data rate. Additionally, the ADC's internal calibration features can be used to improve performance.
-
The recommended power-up sequence for the AD7193BCPZ-RL is to first power up the analog supply (AVDD), followed by the digital supply (DVDD), and then the clock signal. This ensures that the ADC's internal biasing and reference circuits are properly initialized.
-
The AD7193BCPZ-RL has an internal clock oscillator that can be used as the ADC's clock source. However, it is recommended to use an external clock source for better accuracy and stability. If the internal clock oscillator is used, it should be enabled and disabled correctly to avoid any issues.
-
The AD7193BCPZ-RL can be interfaced with a microcontroller using a serial interface such as SPI or I2C. The microcontroller should be configured to match the ADC's data format and communication protocol. Additionally, the microcontroller's digital outputs should be properly buffered to avoid any signal integrity issues.
Trust Checks
Community Provided
System Verified
Community Approved
AD7193BCPZ-RL Overview

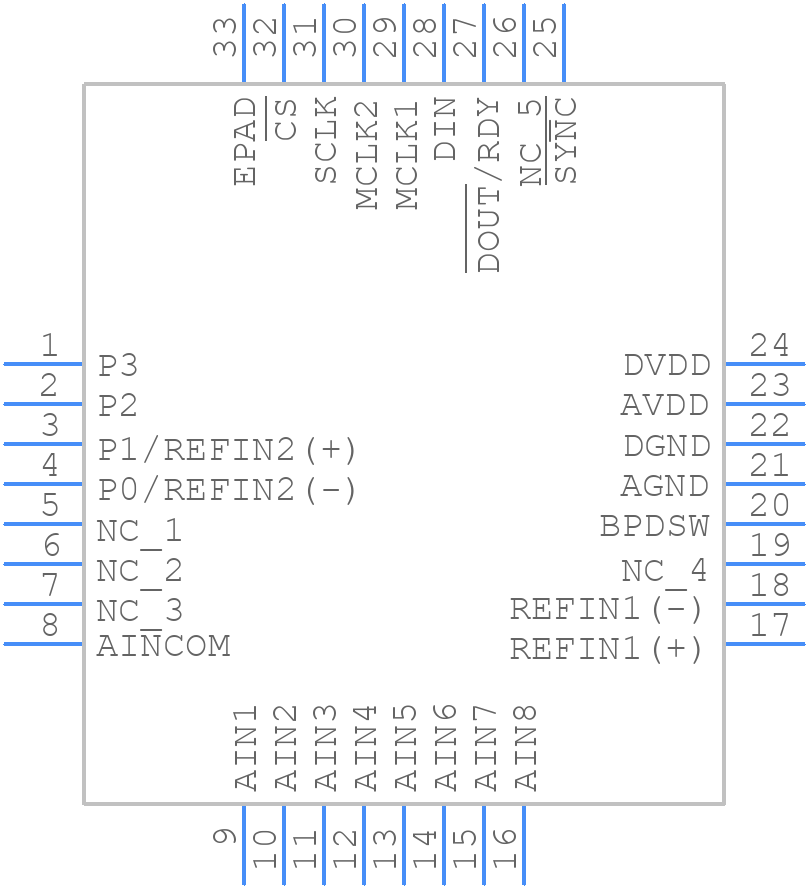

Use the download button to access the AD7193BCPZ-RL schematic symbol, PCB footprint, and 3D model.
