AD7193BRUZ - Analog Devices

Description: 4-Channel, 4.8 kHz, Ultralow Noise, 24-Bit Sigma-Delta ADC with PGA

Download AD7193BRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

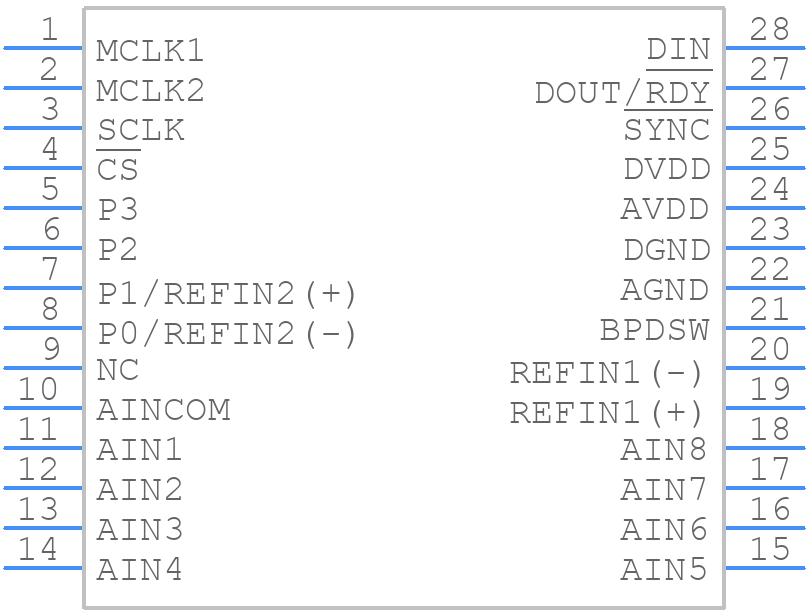

AD7193BRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7193BRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP
click to zoom
3D Models
AD7193BRUZ - Analog Devices - 3D model - Small Outline Packages - TSSOP
click to zoom

AD7193BRUZ Details

  • Manufacturer Part Number:

    AD7193BRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RU-28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5 V

  • Analog Input Voltage-Min:

    -5 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Linearity Error-Max (EL):

    0.00305%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    4

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.0048 MHz

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    33 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7193BRUZ Frequently Asked Questions (FAQs)

  • The AD7193BRUZ requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to place the device close to the analog signal source, use a solid ground plane, and keep the analog and digital signals separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
  • To optimize the AD7193BRUZ's performance, it is essential to understand the specific requirements of your application. This includes selecting the correct gain, filter settings, and data rate. Additionally, consider the noise floor, common-mode rejection ratio, and power supply rejection ratio to ensure optimal performance.
  • The AD7193BRUZ's internal clock has a limited frequency range and accuracy. If a more accurate clock is required, an external clock can be used. To use an external clock, connect the clock signal to the CLKIN pin, and ensure the clock frequency is within the recommended range of 1 MHz to 10 MHz.
  • The AD7193BRUZ requires a specific power-on reset and startup sequence to ensure proper operation. This includes applying power to the device, waiting for the internal reset to complete, and then initializing the device through the SPI interface.
  • When using multiple AD7193BRUZ devices or channels, it is essential to consider the synchronization of the devices, the use of a common clock, and the management of the SPI interface. Additionally, ensure that the devices are properly isolated and decoupled to prevent noise and interference.
