- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AD7194BCPZ-REEL
- Part Number AD7194BCPZ-REEL
- Manufacturer Analog Devices
- Pin Count 33
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - LFCSP-WQ CP-32-11
- Released Date Jan 11, 2017
- Last Modified Date May 14, 2025 12:08 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD7194BCPZ-REEL Details
-
Manufacturer Part Number:
AD7194BCPZ-REEL
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
QFN
-
Package Description:
LFCSP-32
-
Pin Count:
32
-
Manufacturer Package Code:
CP-32-12
-
Country Of Origin:
South Korea
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
AD7194BCPZ-REEL Frequently Asked Questions (FAQs)
-
The recommended layout and placement for the AD7194BCPZ-REEL can be found in the AD7194 Evaluation Board documentation and the AD7194 Layout and Placement Application Note. It is essential to follow these guidelines to ensure optimal performance and minimize noise and interference.
-
The AD7194BCPZ-REEL has an internal calibration mechanism that can be initiated through the CAL bit in the Mode Register. The device can be calibrated in the factory or by the user. The calibration process involves a series of steps, including resetting the device, setting the calibration mode, and reading the calibration coefficients. Refer to the datasheet and the AD7194 Calibration Application Note for more information.
-
The maximum sampling rate of the AD7194BCPZ-REEL is 4.8 kSPS. However, the actual sampling rate may be limited by the system's clock frequency, the settling time of the analog input, and the conversion mode. Refer to the datasheet and the AD7194 Sampling Rate Application Note for more information.
-
Noise and interference can be handled by following proper layout and placement guidelines, using shielding and grounding techniques, and implementing filtering and averaging techniques in the system design. Additionally, the AD7194BCPZ-REEL has built-in features such as a noise reduction mode and a 50 Hz/60 Hz rejection filter to help minimize the effects of noise and interference.
-
The power consumption of the AD7194BCPZ-REEL depends on the operating mode, clock frequency, and supply voltage. The typical power consumption is around 15 mW at 3 V supply voltage and 1.2 kSPS sampling rate. Refer to the datasheet for more information on power consumption in different operating modes.
Trust Checks
Community Provided
System Verified
Community Approved
AD7194BCPZ-REEL Overview

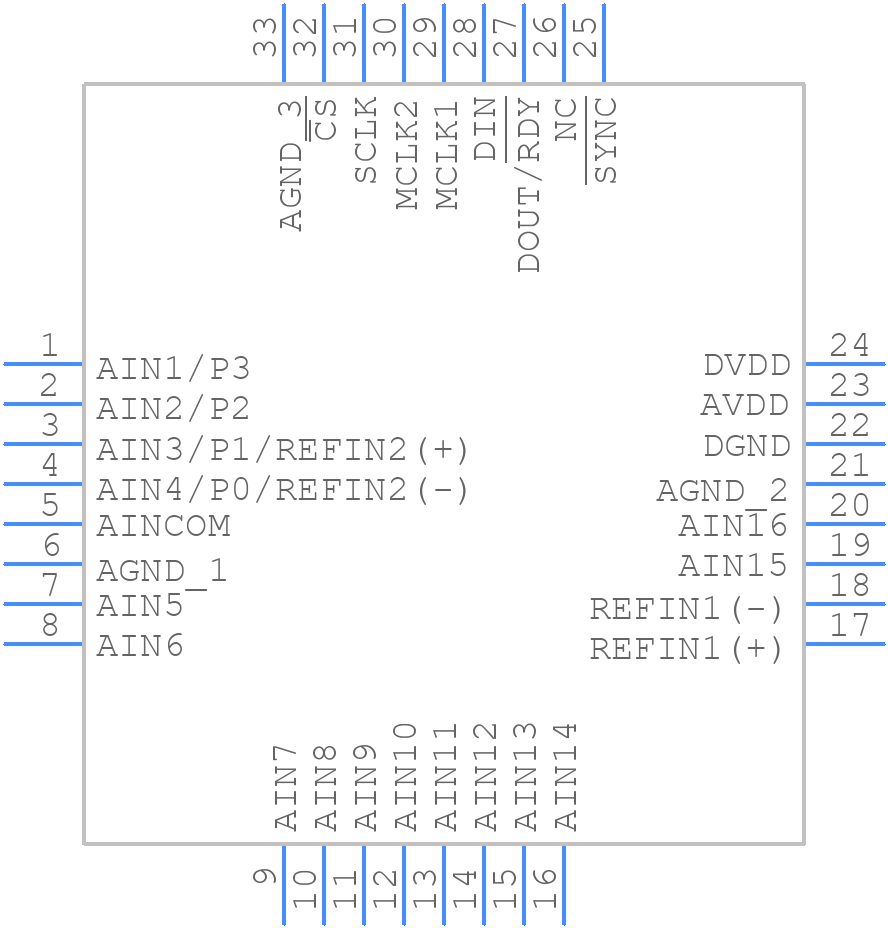

Use the download button to access the AD7194BCPZ-REEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD719,
or try a keyword search, such as Analog to Digital Converters
