AD7195BCPZ-RL - Analog Devices

Description: Analog to Digital Converters - ADC 24-Bit SD ADC with PGA and AC excitation

Download AD7195BCPZ-RL Model

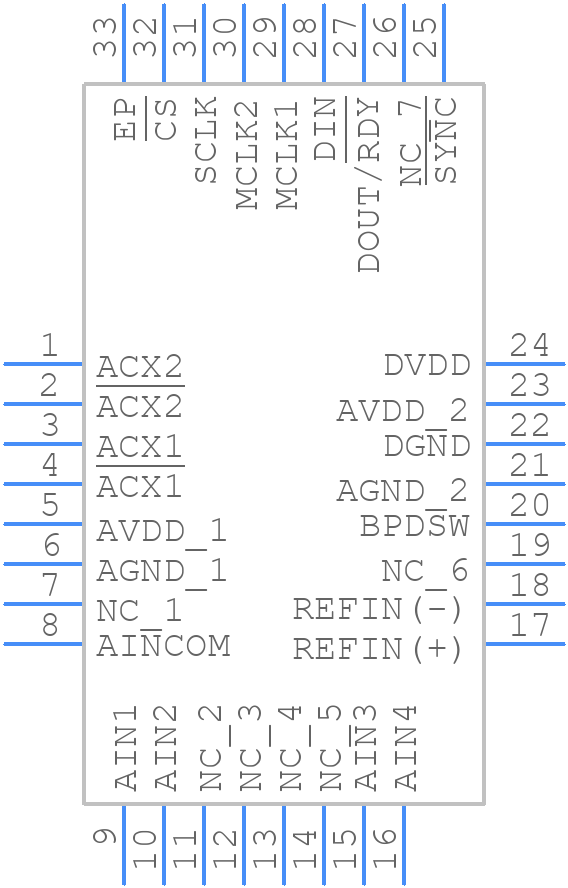

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AD7195BCPZ-RL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-12
click to zoom
3D Models
AD7195BCPZ-RL - Analog Devices  - 3D model - Quad Flat No-Lead - CP-32-12
click to zoom

AD7195BCPZ-RL Details

  • Manufacturer Part Number:

    AD7195BCPZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-12

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    5.25 V

  • Analog Input Voltage-Min:

    4.75 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    4

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.0048 MHz

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    6.9 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

AD7195BCPZ-RL Frequently Asked Questions (FAQs)

  • The AD7195BCPZ-RL is a high-precision ADC, and its performance can be affected by the PCB layout and component placement. It is recommended to follow a star-grounding scheme, keep the analog and digital grounds separate, and place the ADC close to the analog signal sources. Additionally, decoupling capacitors should be placed close to the ADC's power pins.
  • To optimize the AD7195BCPZ-RL's performance, it is essential to understand the application's requirements and adjust the ADC's settings accordingly. This includes selecting the correct gain, offset, and sampling rate, as well as configuring the internal clock and reference voltage. Additionally, the ADC's noise performance can be improved by using a low-noise reference voltage and minimizing digital noise coupling.
  • The AD7195BCPZ-RL's input voltage range is dependent on the gain setting. For gains of 1, 2, 4, and 8, the maximum allowed input voltage range is ±VREF, where VREF is the reference voltage. For gains of 16, 32, and 64, the maximum allowed input voltage range is ±VREF/2. It is essential to ensure that the input voltage does not exceed the maximum allowed range to prevent damage to the ADC.
  • The AD7195BCPZ-RL has an internal calibration mechanism that can be used to optimize its performance. The calibration process involves adjusting the ADC's offset and gain to minimize errors. The calibration process can be performed using the ADC's internal calibration registers or through an external calibration routine. It is recommended to consult the datasheet and application notes for more information on the calibration process.
  • The AD7195BCPZ-RL's power consumption is dependent on the sampling rate, gain, and other settings. The typical power consumption is around 15 mW at a sampling rate of 4.8 kSPS. To minimize power consumption, it is recommended to use the lowest possible sampling rate, reduce the gain, and use the ADC's power-down mode when not in use. Additionally, the power consumption can be reduced by using a lower supply voltage and minimizing digital activity.
