AD7195BCPZ-RL7 - Analog Devices

Description: Analog to Digital Converters - ADC 24-Bit w/PGA AC excitation

Download AD7195BCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

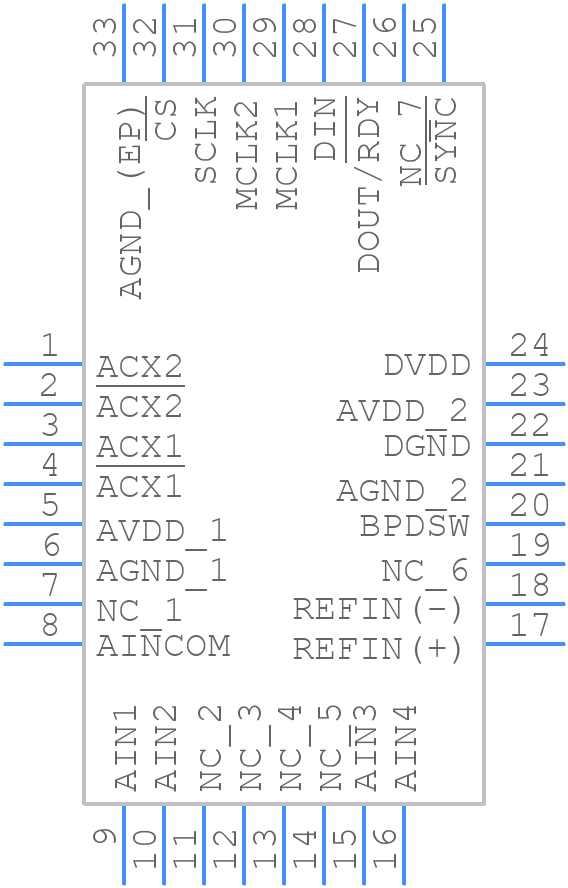

AD7195BCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7195BCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP-WQ CP-32-11
click to zoom
3D Models
AD7195BCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - LFCSP-WQ CP-32-11
click to zoom

AD7195BCPZ-RL7 Details

  • Manufacturer Part Number:

    AD7195BCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-12

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    5.25 V

  • Analog Input Voltage-Min:

    4.75 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    4

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.0048 MHz

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    6.9 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

AD7195BCPZ-RL7 Frequently Asked Questions (FAQs)

  • The AD7195BCPZ-RL7 is a high-precision ADC, and its performance can be affected by the PCB layout and component placement. It is recommended to follow a star-grounding scheme, keep analog and digital grounds separate, and place the ADC close to the analog signal sources. Additionally, decoupling capacitors should be placed close to the ADC's power pins.
  • The AD7195BCPZ-RL7 has an internal calibration mechanism, but it may require additional external calibration to achieve the highest accuracy. This can be done by applying a known input voltage and adjusting the ADC's offset and gain registers accordingly. The calibration process should be repeated at different temperatures and input ranges to ensure optimal performance.
  • The maximum sampling rate of the AD7195BCPZ-RL7 is 4.8 kSPS. The power consumption of the ADC increases with the sampling rate, so it's essential to balance the sampling rate with power consumption requirements. The ADC's power consumption can be reduced by using the power-down mode or reducing the sampling rate.
  • The AD7195BCPZ-RL7 has a serial interface (SPI-compatible) that can be easily interfaced with a microcontroller or FPGA. The ADC's digital output can be connected to the microcontroller's or FPGA's SPI pins, and the interface can be controlled using the ADC's control registers.
  • The AD7195BCPZ-RL7's performance can be affected by temperature changes, which can cause offset and gain errors. To compensate for temperature effects, the ADC has an internal temperature sensor that can be used to monitor the temperature and adjust the ADC's offset and gain registers accordingly.
