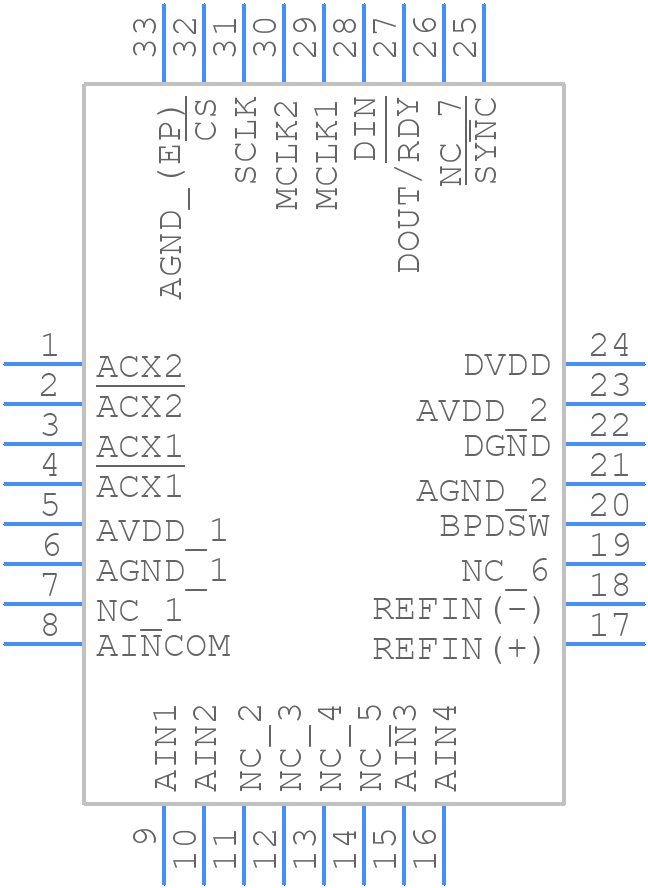

AD7195BCPZ - Analog Devices

AD7195BCPZ Frequently Asked Questions (FAQs)

• What is the recommended layout and placement for the AD7195BCPZ to minimize noise and ensure optimal performance?
  The AD7195BCPZ is a high-precision ADC, and its performance can be affected by the PCB layout and component placement. It is recommended to follow a star-grounding scheme, keep analog and digital grounds separate, and place the ADC close to the analog signal sources. Additionally, decoupling capacitors should be placed close to the ADC's power pins, and the analog input traces should be kept short and shielded.
• How do I optimize the AD7195BCPZ's performance for my specific application?
  To optimize the AD7195BCPZ's performance, it is essential to understand the application's requirements and adjust the ADC's settings accordingly. This includes selecting the appropriate gain, offset, and sampling rate, as well as configuring the internal clock and calibration options. Additionally, the ADC's noise reduction features, such as the 50 Hz/60 Hz rejection filter, can be enabled or disabled depending on the application's requirements.
• What are the limitations of the AD7195BCPZ's internal clock, and when should an external clock be used?
  The AD7195BCPZ's internal clock is a 4.096 MHz oscillator that can be used as the ADC's clock source. However, the internal clock has a limited accuracy and stability, which may not be suitable for all applications. If a higher clock accuracy or stability is required, an external clock source should be used. Additionally, an external clock can be used to synchronize multiple AD7195BCPZ devices or to provide a clock signal that is synchronized with other system components.
• How do I ensure the AD7195BCPZ's calibration is accurate and reliable?
  The AD7195BCPZ's calibration is a critical step in ensuring the ADC's accuracy and reliability. The calibration process involves adjusting the ADC's internal offset and gain to compensate for any errors or variations. To ensure accurate and reliable calibration, it is essential to follow the recommended calibration procedure, use a high-accuracy reference voltage, and minimize any external noise or interference during the calibration process.
• What are the thermal considerations for the AD7195BCPZ, and how can I ensure reliable operation over the entire operating temperature range?
  The AD7195BCPZ is a high-precision ADC that can be sensitive to temperature variations. To ensure reliable operation over the entire operating temperature range, it is essential to consider thermal management and minimize any thermal gradients on the PCB. This can be achieved by using thermal vias, thermal pads, and heat sinks, as well as ensuring good airflow around the device. Additionally, the ADC's internal temperature sensor can be used to monitor the device's temperature and adjust the calibration accordingly.
