AD7245ABRZ - Analog Devices

Description: AD7245ABRZ, 12 bit-Bit DAC 143ksps, Parallel, 24-Pin SOIC W

Download AD7245ABRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

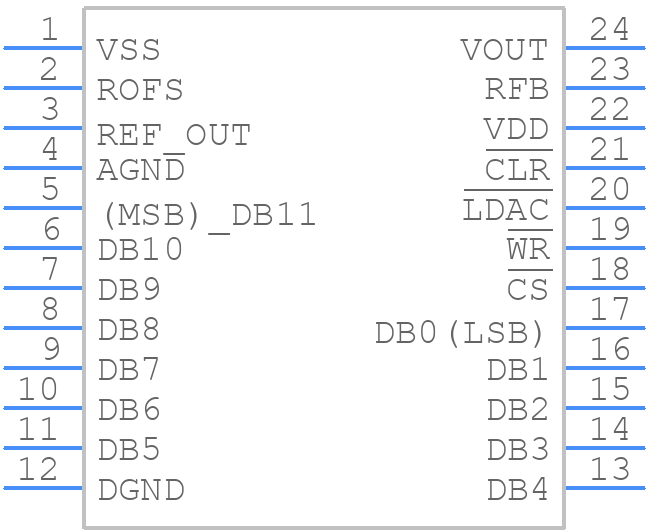

Symbol
AD7245ABRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7245ABRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-24-01
click to zoom

AD7245ABRZ Details

  • Manufacturer Part Number:

    AD7245ABRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Package Description:

    0.300 INCH, SOIC-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RW-24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Analog Output Voltage-Max:

    5 V

  • Analog Output Voltage-Min:

    -5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.4 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -15 V

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Settling Time-Max:

    7 µs

  • Settling Time-Nom (tstl):

    7 µs

  • Supply Current-Max:

    12 mA

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

AD7245ABRZ Frequently Asked Questions (FAQs)

  • The AD7245ABRZ requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to place the device close to the analog signal sources, use a solid ground plane, and keep the analog and digital signal traces separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
  • To optimize the AD7245ABRZ's performance, it is essential to understand the specific requirements of your application. This includes selecting the correct gain and bandwidth settings, optimizing the analog front-end circuitry, and ensuring proper power supply decoupling. Additionally, it is recommended to consult the device's evaluation board documentation and application notes for guidance.
  • Potential sources of noise and interference in the AD7245ABRZ include electromagnetic interference (EMI), radio-frequency interference (RFI), and digital noise. To mitigate these effects, it is recommended to use shielding, filtering, and grounding techniques, as well as to minimize the distance between the device and the analog signal sources.
  • To ensure the AD7245ABRZ's accuracy and linearity over temperature and time, it is essential to calibrate the device regularly and to use a high-quality voltage reference. Additionally, it is recommended to use a temperature-compensated voltage reference and to minimize thermal gradients across the device.
  • The AD7245ABRZ's input impedance can affect the overall system design, particularly in terms of signal attenuation and distortion. It is essential to consider the input impedance when designing the analog front-end circuitry and to ensure that the signal sources can drive the required impedance.
