AD7265BCPZ - Analog Devices

Description: AD7265BCPZ, 12 bit ADC Dual, Differential, SPI, Microwire, 32-Pin LFCSP EP

Download AD7265BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

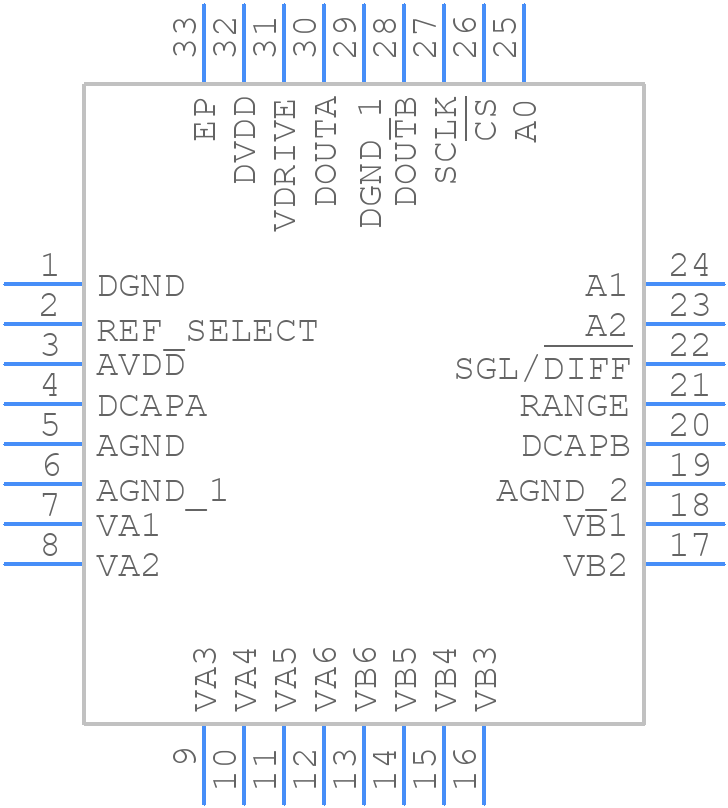

AD7265BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7265BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-2(LFCSP_VQ)
click to zoom
3D Models
AD7265BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-2(LFCSP_VQ)
click to zoom

AD7265BCPZ Details

  • Manufacturer Part Number:

    AD7265BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-2

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.25 V

  • Conversion Time-Max:

    0.875 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    3

  • Number of Bits:

    12

  • Number of Functions:

    2

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

AD7265BCPZ Frequently Asked Questions (FAQs)

  • The AD7265BCPZ is a high-speed, high-precision ADC, and as such, it requires careful layout and placement to achieve optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling.
  • To optimize the AD7265BCPZ's performance, it is essential to understand the specific requirements of your application. This includes selecting the appropriate sampling rate, input range, and gain settings. Additionally, consider the noise floor, signal-to-noise ratio, and distortion requirements of your application. Consult the datasheet and application notes for guidance on optimizing performance.
  • When using the AD7265BCPZ in a multi-channel system, it is essential to consider the channel-to-channel crosstalk, noise coupling, and synchronization requirements. Ensure that each channel is properly isolated, and consider using a separate analog supply and reference voltage for each channel. Additionally, synchronize the conversion cycles of each channel to minimize noise and crosstalk.
  • The AD7265BCPZ outputs 16-bit digital data, which can be processed and stored in a microcontroller or FPGA. Ensure that your system can handle the data rate and format of the ADC's output. Consider using a FIFO or buffer to handle the data, and ensure that your system can process the data in real-time.
  • The AD7265BCPZ is a high-power device, and as such, it requires proper thermal management to ensure reliable operation. Ensure that the device is mounted on a suitable heat sink, and that the thermal interface material is properly applied. Monitor the device's junction temperature and ensure that it remains within the specified operating range.
