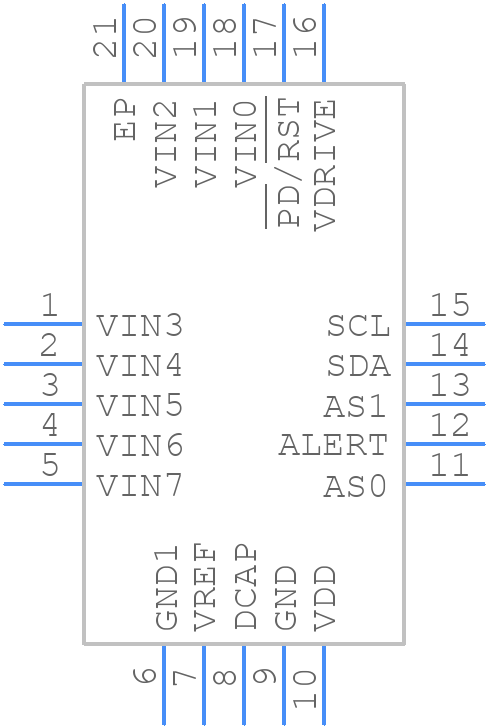

AD7291TCPZ-EP-RL7 - Analog Devices

AD7291TCPZ-EP-RL7 Details

• Manufacturer Part Number:

  AD7291TCPZ-EP-RL7

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  LFCSP-20

• Pin Count:

  20

• Manufacturer Package Code:

  CP-20-8

• Country Of Origin:

  South Korea

• ECCN Code:

  3A001.A.2.C

• HTS Code:

  8542.39.00.01

• Date Of Intro:

  2017-09-25

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Analog Input Voltage-Max:

  2.5 V

• Conversion Time-Max:

  3.2 µs

• Converter Type:

  ADC, SUCCESSIVE APPROXIMATION

• JESD-30 Code:

  S-XQCC-N20

• Length:

  4 mm

• Linearity Error-Max (EL):

  0.024%

• Moisture Sensitivity Level:

  3

• Number of Analog In Channels:

  8

• Number of Bits:

  12

• Number of Functions:

  1

• Number of Terminals:

  20

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Output Bit Code:

  BINARY, 2S COMPLEMENT BINARY

• Output Format:

  SERIAL

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC20,.16SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Sample Rate:

  0.02222 MHz

• Sample and Hold / Track and Hold:

  TRACK

• Seated Height-Max:

  0.8 mm

• Supply Current-Max:

  3.5 mA

• Supply Voltage-Nom:

  3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  4 mm
