AD7298BCPZ-RL7 - Analog Devices

Description: 8-Channel, 1MSPS, 12-Bit SAR ADC with Temperature Sensor 2.8 V to 3.6 V,−40°C to +125°C

Download AD7298BCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

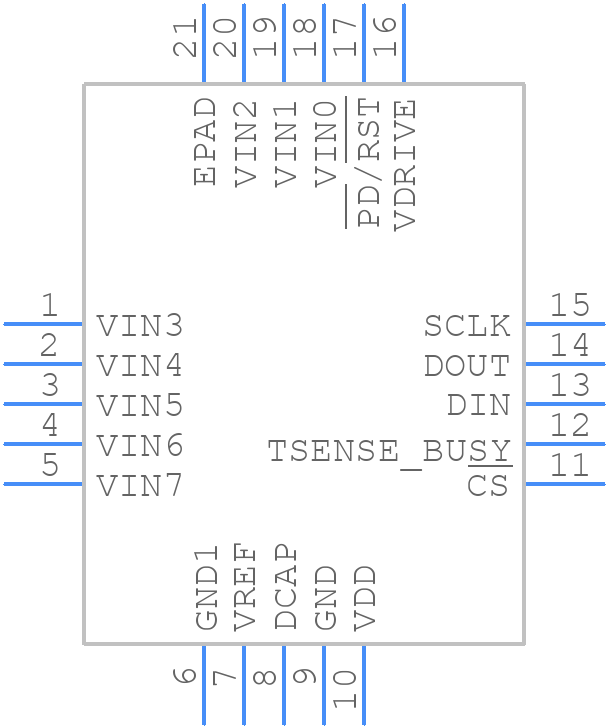

AD7298BCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7298BCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-20-8
click to zoom
3D Models
AD7298BCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-20-8
click to zoom

AD7298BCPZ-RL7 Details

  • Manufacturer Part Number:

    AD7298BCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    4 X 4 MM, ROHS COMPLIANT, MO-220WGGD, LFCSP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    CP-20-8

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.5 V

  • Conversion Time-Max:

    1 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    8

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

AD7298BCPZ-RL7 Frequently Asked Questions (FAQs)

  • The AD7298BCPZ-RL7 requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources.
  • The AD7298BCPZ-RL7 requires calibration to achieve optimal accuracy and linearity. The calibration process involves adjusting the internal offset and gain registers to compensate for device variations and external component tolerances. The calibration procedure is described in the datasheet and application notes.
  • The maximum sampling rate of the AD7298BCPZ-RL7 is 1 MSPS. The sampling rate affects the power consumption, with higher sampling rates resulting in higher power consumption. The power consumption can be estimated using the formula provided in the datasheet, which takes into account the sampling rate, voltage supply, and other factors.
  • The AD7298BCPZ-RL7 has built-in overvoltage protection (OVP) and undervoltage lockout (UVLO) circuits to protect the device from voltage transients and faults. However, additional external protection circuits may be required to ensure robustness and reliability. The recommended protection circuits include TVS diodes, zener diodes, and resistors, which can be designed using the guidelines provided in the datasheet and application notes.
  • The recommended power-up and power-down sequence for the AD7298BCPZ-RL7 involves powering up the analog supply (AVDD) before the digital supply (DVDD), and powering down the digital supply before the analog supply. This sequence helps prevent damage and ensures reliable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7298BCPZ-RL7 Overview

Use the download button to access the AD7298BCPZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD729, or try a keyword search, such as Analog to Digital Converters
