AD7303BRZ-REEL7 - Analog Devices

Description: Digital to Analog Converters - DAC Dual Serial 8-Bit Single Supply DAC I.C.

Download AD7303BRZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

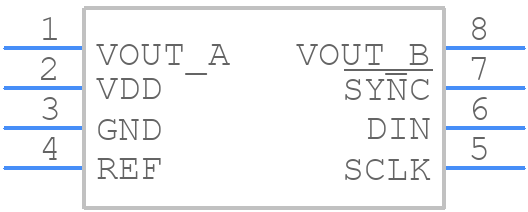

AD7303BRZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7303BRZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin SOIC (SO-8)_2023
click to zoom
3D Models
AD7303BRZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - 8-Pin SOIC (SO-8)_2023
click to zoom

AD7303BRZ-REEL7 Details

  • Manufacturer Part Number:

    AD7303BRZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Settling Time-Max:

    2 µs

  • Settling Time-Nom (tstl):

    1.2 µs

  • Supply Current-Max:

    3.5 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

AD7303BRZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD7303BRZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. Additionally, it's recommended to place the device close to the analog signal sources and to use a low-ESR capacitor for power supply decoupling.
  • To ensure the accuracy of the ADC conversion results, it's essential to follow proper PCB layout guidelines, use a stable and low-noise power supply, and minimize electromagnetic interference (EMI) and radio-frequency interference (RFI). Additionally, calibration and offset correction can be performed to improve the accuracy of the ADC conversion results.
  • The maximum clock frequency that can be used with the AD7303BRZ-REEL7 is 1.5 MHz. However, the actual clock frequency used may be limited by the specific application and the required conversion rate.
  • Yes, the AD7303BRZ-REEL7 can be used in a multi-channel application. The device has a serial interface that allows it to be connected to a microcontroller or DSP, making it suitable for multi-channel applications. However, the specific implementation details will depend on the requirements of the application.
  • The power consumption of the AD7303BRZ-REEL7 depends on the specific operating conditions. However, the typical power consumption is around 1.5 mA at a supply voltage of 5 V and a clock frequency of 1 MHz.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7303BRZ-REEL7 Overview

Use the download button to access the AD7303BRZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD730, or try a keyword search, such as Digital to Analog Converters
