AD7304BRZ - Analog Devices

Description: AD7304BRZ, 8 bit-Bit DAC Quad 1Msps, SPI, 16-Pin SOIC W

Download AD7304BRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

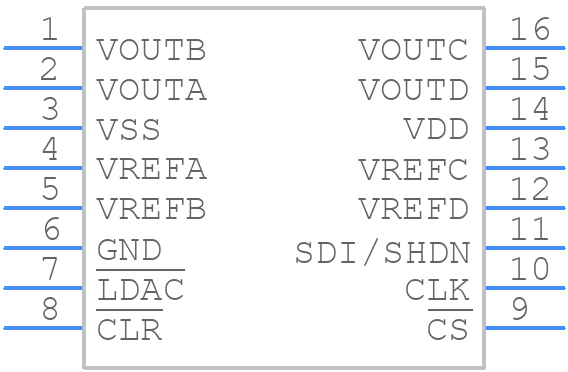

AD7304BRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7304BRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - . 16-Lead Standard Small Outline Package [SOIC_W] Wide Body (RW-16)
click to zoom
3D Models
AD7304BRZ - Analog Devices - 3D model - Small Outline Packages - . 16-Lead Standard Small Outline Package [SOIC_W] Wide Body (RW-16)
click to zoom

AD7304BRZ Details

  • Manufacturer Part Number:

    AD7304BRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    LEAD FREE, MS-013AA, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5 V

  • Analog Output Voltage-Min:

    -5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Settling Time-Max:

    2 µs

  • Settling Time-Nom (tstl):

    1 µs

  • Supply Current-Max:

    6 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

AD7304BRZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the signal traces short and direct. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane and a dedicated digital ground plane.
  • The AD7304BRZ has an internal calibration circuit that can be enabled by setting the CAL pin high. It's recommended to perform a self-calibration cycle after power-up and after any changes to the gain or offset settings. Additionally, it's recommended to perform a system calibration using an external calibration signal.
  • The recommended power-up sequence is to apply the analog power supply (AVDD) first, followed by the digital power supply (DVDD), and then the clock signal. This ensures that the analog circuitry is powered up before the digital circuitry, preventing any potential damage or incorrect operation.
  • The AD7304BRZ outputs data in a 16-bit, 2's complement format. To ensure correct data processing, it's recommended to use a signed 16-bit integer data type and to perform any necessary scaling or offset adjustments based on the gain and offset settings.
  • The AD7304BRZ has built-in ESD protection, but it's still recommended to handle the device with care and follow proper ESD protection procedures, such as using an ESD wrist strap or mat, and storing the device in an anti-static bag or container.
