AD7306ANZ - Analog Devices

Description: Analog Devices AD7306ANZ, Line Transceiver, ElA-232-E, RS-422 3-TX 2-RX, 5 V, 24-Pin PDIP

Download AD7306ANZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

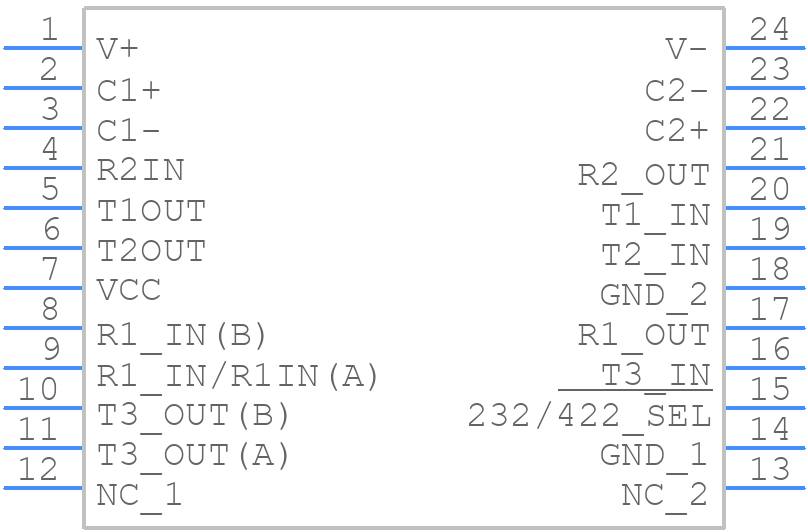

AD7306ANZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7306ANZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-24-1
click to zoom
3D Models
AD7306ANZ - Analog Devices - 3D model - Dual-In-Line Packages - N-24-1
click to zoom

AD7306ANZ Details

  • Manufacturer Part Number:

    AD7306ANZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    DIP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    N-24-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    CONFIGURABLE INTERFACE STANDARDS; EXTERNAL CHARGE PUMP

  • Differential Output:

    YES

  • Driver Number of Bits:

    3

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232; EIA-422

  • JESD-30 Code:

    R-PDIP-T24

  • JESD-609 Code:

    e3

  • Length:

    30.485 mm

  • Number of Functions:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    TOTEM-POLE

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    200 ns

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Transmit Delay-Max:

    100 ns

  • Width:

    7.62 mm

AD7306ANZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the sensitive analog signals away from the digital signals. Also, use short and direct traces for the analog signals and avoid crossing digital signals over the analog signals.
  • The AD7306ANZ has an internal calibration circuit that can be used to calibrate the device. The calibration process involves shorting the CAL pin to the VREF pin and then applying a known voltage to the VIN pin. The device will then adjust its internal voltage reference to match the applied voltage.
  • The maximum sampling rate of the AD7306ANZ is 100 kSPS. However, the actual sampling rate may be limited by the system's clock frequency, the conversion time, and the settling time of the analog input signal.
  • If the AD7306ANZ is not converting the analog signal correctly, check the input signal range, the reference voltage, and the clock frequency. Ensure that the input signal is within the specified range, the reference voltage is stable, and the clock frequency is within the recommended range. Also, check for any noise or interference in the system that may be affecting the conversion.
  • Yes, the AD7306ANZ can be used in a multi-channel application. The device has a built-in multiplexer that allows it to convert multiple analog signals. The multiplexer can be controlled using the MUXA and MUXB pins to select the desired channel.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7306ANZ Overview

Use the download button to access the AD7306ANZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD730, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
