AD7323BRUZ-REEL7 - Analog Devices

Description: Analog to Digital Converters - ADC 4-Channel,12-Bit+Sign Bipolar Input ADC

Download AD7323BRUZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

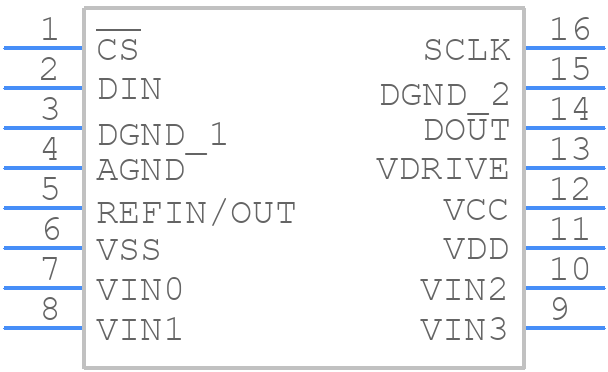

AD7323BRUZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7323BRUZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RU-16)
click to zoom
3D Models
AD7323BRUZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - (RU-16)
click to zoom

AD7323BRUZ-REEL7 Details

  • Manufacturer Part Number:

    AD7323BRUZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    10 V

  • Analog Input Voltage-Min:

    -10 V

  • Conversion Time-Max:

    1.6 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0269%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    4

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.5 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7323BRUZ-REEL7 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog signals away from the digital signals. Also, use short and direct traces for the analog signals and avoid crossing digital signals over the analog signals.
  • To ensure accuracy, use a low-pass filter to remove high-frequency noise, use a stable and low-noise voltage reference, and consider using a shielded enclosure to reduce electromagnetic interference (EMI). Additionally, use the ADC's built-in features such as the programmable gain amplifier and the analog input buffer to optimize the signal-to-noise ratio.
  • The recommended power-up sequence is to apply the analog supply voltage (VCC) first, followed by the digital supply voltage (VDD), and then the clock signal. This ensures that the internal biasing and reference circuits are properly initialized before the ADC starts converting.
  • First, check the power supply voltages and ensure they are within the recommended range. Then, verify that the clock signal is stable and within the recommended frequency range. Also, check the analog input signal for any distortion or noise, and ensure that the input signal is within the recommended range. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines.
  • The AD7323BRUZ-REEL7 has a built-in calibration feature that can be used to calibrate the ADC. The calibration process involves applying a known input voltage and adjusting the internal offset and gain registers to optimize the ADC's performance. Consult the datasheet and application notes for detailed calibration procedures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7323BRUZ-REEL7 Overview

Use the download button to access the AD7323BRUZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD732, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
