AD7328BRUZ-REEL - Analog Devices

Description: Analog to Digital Converters - ADC 8-Channel,12-Bit+ Sign, Bipolar ADC

Download AD7328BRUZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

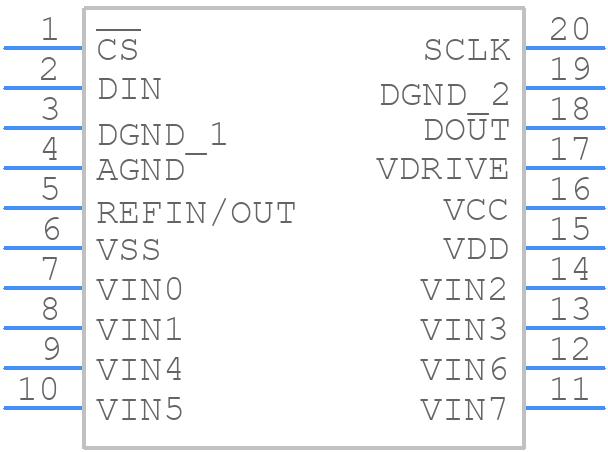

Symbol
AD7328BRUZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7328BRUZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-20 (TSSOP)
click to zoom
3D Models
AD7328BRUZ-REEL - Analog Devices - 3D model - Small Outline Packages - RU-20 (TSSOP)
click to zoom

AD7328BRUZ-REEL Details

  • Manufacturer Part Number:

    AD7328BRUZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AC, TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RU-20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    10 V

  • Analog Input Voltage-Min:

    -10 V

  • Conversion Time-Max:

    0.8 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Linearity Error-Max (EL):

    0.0269%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    8

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    0.36 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    4.4 mm

AD7328BRUZ-REEL Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the AD7328BRUZ-REEL involves keeping the analog and digital signals separate, using a solid ground plane, and minimizing the length of the analog signal traces. Additionally, it is recommended to use a 4-layer PCB with a dedicated analog ground layer and to avoid running digital signals under the analog signal traces.
  • The AD7328BRUZ-REEL's internal reference voltage can be configured by setting the REFSEL pin high or low. Using an external reference voltage can provide better accuracy and stability, but it requires careful consideration of the external reference voltage's noise and drift characteristics. It is recommended to consult the datasheet and application notes for specific guidance on configuring the internal reference voltage and using an external reference voltage.
  • The maximum sampling rate of the AD7328BRUZ-REEL is 1 MSPS, but this can be limited by the conversion time, settling time, and the clock frequency. The actual sampling rate may be lower depending on the specific application and the system's clock frequency. It is recommended to consult the datasheet and application notes for specific guidance on achieving the maximum sampling rate.
  • The AD7328BRUZ-REEL has a power-on reset that initializes the device to a default state. Not properly handling the power-on reset can result in incorrect or unstable operation. It is recommended to ensure that the device is properly reset and configured after power-on, and to consult the datasheet and application notes for specific guidance on handling the power-on reset.
  • The AD7328BRUZ-REEL has a maximum junction temperature of 150°C, and it is recommended to ensure that the device is operated within the specified temperature range. Thermal considerations include providing adequate heat sinking, minimizing power dissipation, and ensuring good airflow. It is recommended to consult the datasheet and application notes for specific guidance on thermal considerations and ensuring reliable operation over temperature.
