AD7357BCPZ - Analog Devices

Description: Analog Devices AD7357BCPZ, 14 bit DSP, Micro Wire, QSPI, SPI ADC, Dual Differential Input, 18-Pin LFCSP

Download AD7357BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

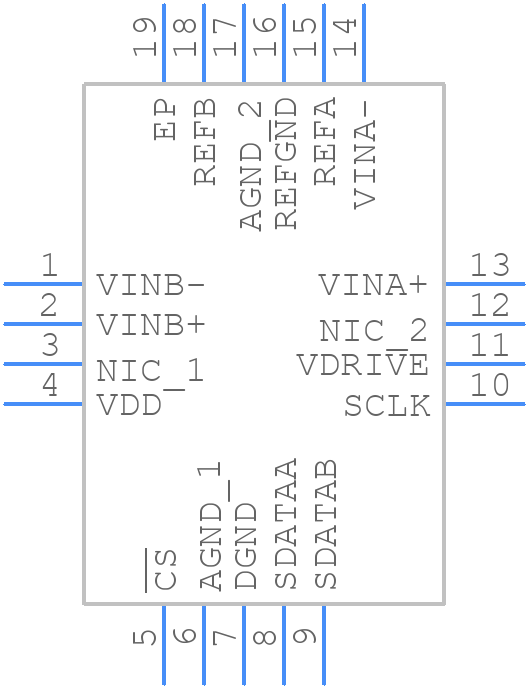

AD7357BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7357BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-18-1_2022
click to zoom
3D Models
AD7357BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-18-1_2022
click to zoom

AD7357BCPZ Details

  • Manufacturer Part Number:

    AD7357BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-18

  • Pin Count:

    18

  • Manufacturer Package Code:

    CP-18-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.975 V

  • Analog Input Voltage-Min:

    0.5 V

  • Conversion Time-Max:

    0.238 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-XQCC-N18

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0183%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    2

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    4.2 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

AD7357BCPZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the clock signal. This ensures that the internal bias voltage is established before the clock is applied.
  • The AD7357 has a flexible analog input range that can be optimized by adjusting the VREF voltage and the gain of the PGA (Programmable Gain Amplifier). Consult the datasheet for specific guidelines on how to calculate the optimal VREF and PGA gain settings for your application.
  • The maximum sampling rate of the AD7357 is 3 MSPS (mega-samples per second). However, the actual achievable sampling rate may be limited by the system's clock frequency, analog input bandwidth, and other factors. Consult the datasheet for more information on how to optimize the sampling rate for your application.
  • The AD7357 has internal overvoltage protection on the analog input pins, but it's still important to ensure that the input signals do not exceed the maximum ratings specified in the datasheet. If overvoltage conditions are expected, consider adding external protection circuitry, such as voltage-limiting resistors or clamping diodes, to prevent damage to the device.
  • To minimize digital noise and ensure reliable data transmission, it's recommended to use a low-impedance PCB layout, keep digital signal traces short and away from analog signals, and use a ground plane to reduce electromagnetic interference (EMI). Consult the datasheet for more specific guidelines on PCB layout and routing.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7357BCPZ Overview

Use the download button to access the AD7357BCPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD735, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
