AD7357YRUZ-RL - Analog Devices

Description: Differential Input,Dual,Simultaneous Sampling, 4.25 MSPS, 14-Bit, SAR ADC

Download AD7357YRUZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

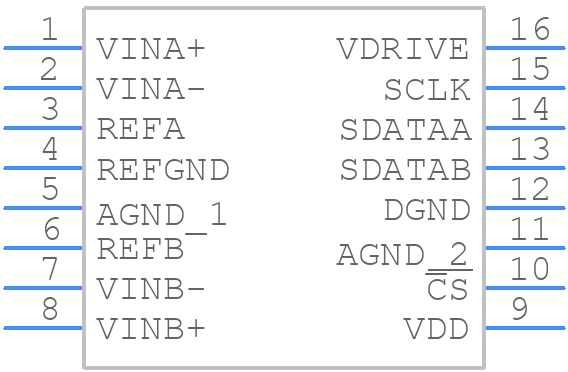

Symbol
AD7357YRUZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7357YRUZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 PIN TSSOP
click to zoom
3D Models
AD7357YRUZ-RL - Analog Devices - 3D model - Small Outline Packages - 16 PIN TSSOP
click to zoom

AD7357YRUZ-RL Details

  • Manufacturer Part Number:

    AD7357YRUZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    1.6 V

  • Analog Input Voltage-Min:

    0.5 V

  • Conversion Time-Max:

    0.238 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0183%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    2

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    4.2 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7357YRUZ-RL Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the AD7357YRUZ-RL involves keeping the analog and digital sections separate, using a solid ground plane, and minimizing the length of the analog signal traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground layer and to avoid running digital signals under the analog section.
  • The internal reference voltage of the AD7357YRUZ-RL can be configured by connecting the REFSEL pin to VDD or GND. Using an external reference voltage can provide better accuracy and stability, but it requires careful consideration of the reference voltage's noise and drift characteristics, as well as its impact on the ADC's overall performance.
  • The maximum sampling rate of the AD7357YRUZ-RL is 3 MSPS, but this rate can be limited by the device's settling time, clock jitter, and the quality of the analog input signal. Additionally, the sampling rate may need to be reduced at higher temperatures or when using certain operating modes.
  • The AD7357YRUZ-RL's digital output data can be handled by using a microcontroller or FPGA to read the data from the device's serial interface. The device supports different data formats, including binary, twos-complement, and offset binary, each with its own implications for data processing and analysis.
  • The AD7357YRUZ-RL has a typical power consumption of 35 mW at 3 V and 65°C, and its thermal characteristics include a junction-to-ambient thermal resistance of 30°C/W. These characteristics need to be considered in system design to ensure proper thermal management and power supply design.
