AD7380-4BCPZ - Analog Devices

Description: Differential Input, Quad, External Reference Simultaneous Sampling, 16-Bit, SAR ADC

Download AD7380-4BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

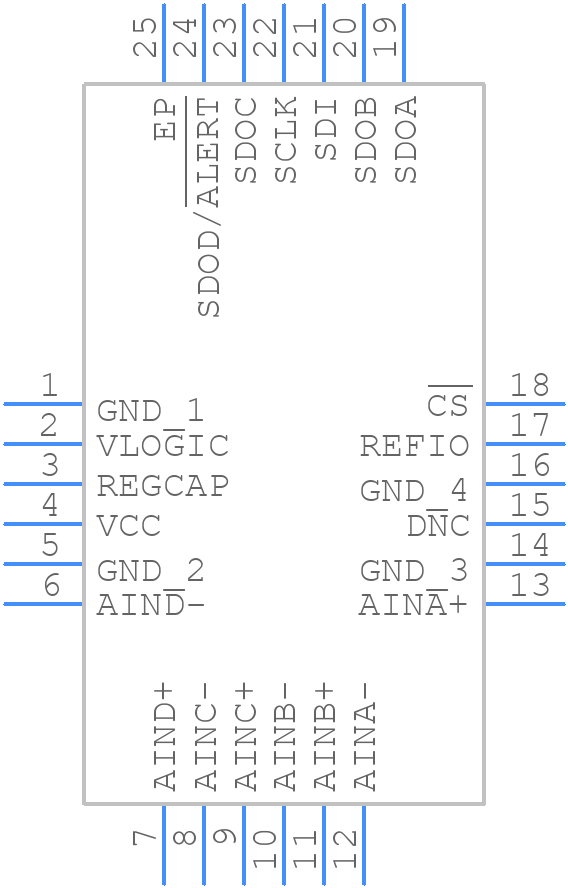

AD7380-4BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7380-4BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - AD7380-4BCPZ
click to zoom
3D Models
AD7380-4BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - AD7380-4BCPZ
click to zoom

AD7380-4BCPZ Details

  • Manufacturer Part Number:

    AD7380-4BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-25

  • ECCN Code:

    3A991.C.4

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    3.4 V

  • Analog Input Voltage-Min:

    2.49 V

  • Conversion Time-Max:

    0.19 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-XQCC-N24

  • Length:

    4 mm

  • Linearity Error-Max (EL):

    0.004577637%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    4

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HWQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY VERY THIN PROFIL

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    4 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    0.6 mm

  • Supply Current-Max:

    42 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

AD7380-4BCPZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the AD7380-4BCPZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • For low-frequency applications, it's recommended to use a higher gain setting and a lower bandwidth filter to improve the signal-to-noise ratio. Additionally, using a chopper stabilization technique can help to reduce the 1/f noise and improve the overall performance.
  • The maximum sampling rate of the AD7380-4BCPZ is 100 kSPS. However, the actual sampling rate may be limited by the system's bandwidth and the desired signal-to-noise ratio.
  • The AD7380-4BCPZ can be interfaced with a microcontroller or FPGA using a serial peripheral interface (SPI) or an inter-integrated circuit (I2C) interface. The specific interface protocol and pin connections will depend on the specific microcontroller or FPGA being used.
  • The power consumption of the AD7380-4BCPZ is typically around 15 mW. To minimize power consumption, it's recommended to use a lower supply voltage, reduce the sampling rate, and use the power-down mode when the device is not in use.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7380-4BCPZ Overview

Use the download button to access the AD7380-4BCPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD738, or try a keyword search, such as Analog to Digital Converters
