AD7386-4BCPZ - Analog Devices

Description: Single-Ended Input, Quad, Simultaneous Sampling, 16-Bit/14-Bit/12-Bit, SAR ADC

Download AD7386-4BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

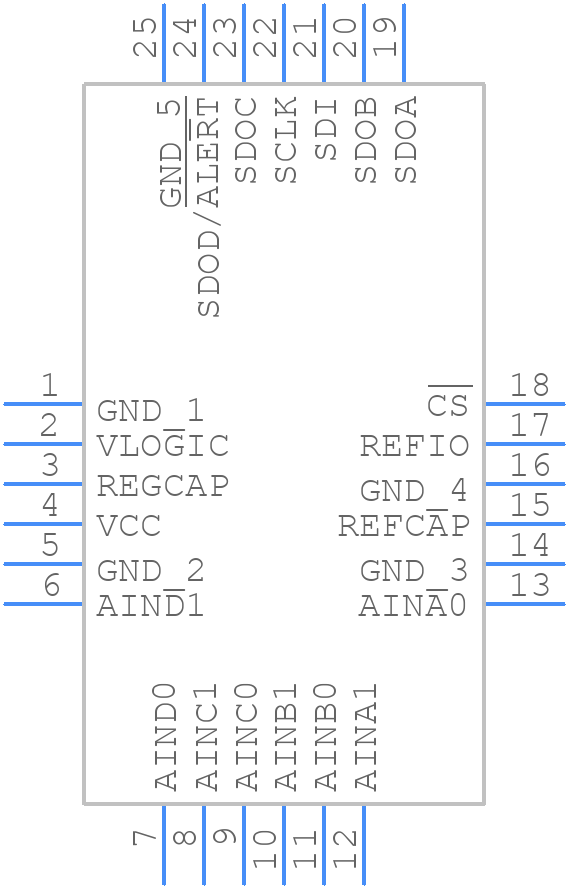

Symbol
AD7386-4BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7386-4BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP:LEADFRM CHIP SCALE_2023-3
click to zoom
3D Models
AD7386-4BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - LFCSP:LEADFRM CHIP SCALE_2023-3
click to zoom

AD7386-4BCPZ Details

  • Manufacturer Part Number:

    AD7386-4BCPZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-24

  • ECCN Code:

    3A991.c.4

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    3.4 V

  • Conversion Time-Max:

    0.19 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-XQCC-N24

  • Length:

    4 mm

  • Linearity Error-Max (EL):

    0.0106811%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    4

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HUQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, ULTRA THIN PROFILE

  • Sample Rate:

    4 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    0.6 mm

  • Supply Current-Max:

    45 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

AD7386-4BCPZ Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the AD7386-4BCPZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane. The datasheet provides a recommended layout and routing diagram, but it's also recommended to consult with Analog Devices' application notes and layout guidelines for more detailed information.
  • The AD7386-4BCPZ has an internal calibration circuit that can be used to calibrate the device. The calibration process involves applying a known input voltage to the device and then using the SPI interface to read the output code. The calibration data can then be used to correct for any offset and gain errors. The datasheet provides a detailed calibration procedure, and it's also recommended to consult with Analog Devices' application notes for more information on calibration and trimming.
  • The maximum sampling rate of the AD7386-4BCPZ is 4 MSPS, and it can be achieved by using the device's internal clock or an external clock source. The power consumption of the device increases with the sampling rate, and it's recommended to consult with the datasheet and Analog Devices' application notes for more information on power consumption and thermal management.
  • The AD7386-4BCPZ has a SPI-compatible interface that can be used to communicate with a microcontroller or FPGA. The recommended communication protocol is the SPI protocol, and the datasheet provides a detailed description of the interface timing and protocol. It's also recommended to consult with Analog Devices' application notes and code examples for more information on interfacing the AD7386-4BCPZ with popular microcontrollers and FPGAs.
  • The AD7386-4BCPZ has a maximum junction temperature of 150°C, and it's recommended to ensure that the device is operated within the recommended temperature range to ensure reliable operation. The datasheet provides thermal management guidelines, including recommendations for thermal pads, heat sinks, and airflow. It's also recommended to consult with Analog Devices' application notes and thermal management guidelines for more information on ensuring reliable operation over temperature.
