AD7386BCPZ-RL7 - Analog Devices

Description: Analog to Digital Converters - ADC 3Msps 16-bit Dual Single Ended SAR ADC

Download AD7386BCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

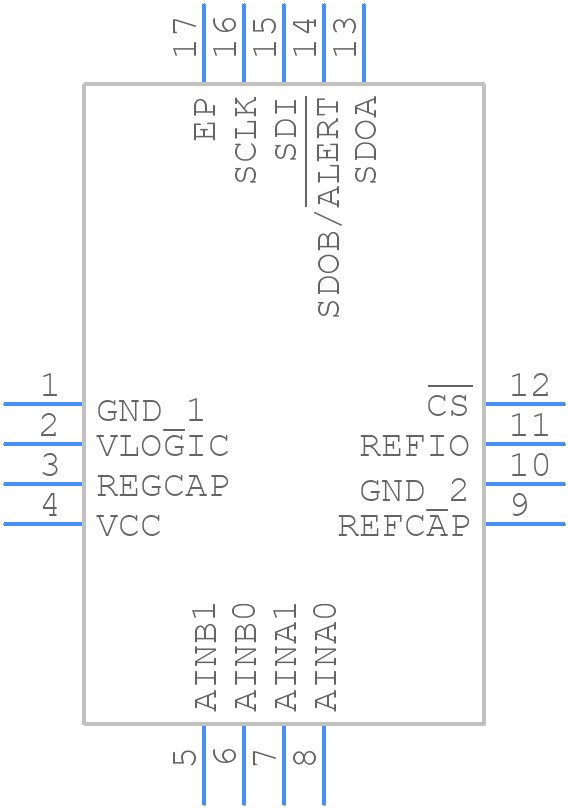

AD7386BCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7386BCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-16-45)-
click to zoom
3D Models
AD7386BCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-16-45)-
click to zoom

AD7386BCPZ-RL7 Details

  • Manufacturer Part Number:

    AD7386BCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-45

  • ECCN Code:

    3A991.C.4

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-08-30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    3.3 V

  • Conversion Time-Max:

    0.19 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-XQCC-N16

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0053%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    4

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    4 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    26 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD7386BCPZ-RL7 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signal traces separate. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To optimize the performance of the AD7386BCPZ-RL7 in a noisy environment, use a low-pass filter at the input, use a shielded cable, and keep the device away from noise sources. Additionally, use a good quality power supply and decouple the power supply lines.
  • The recommended power-up sequence for the AD7386BCPZ-RL7 is to power up the analog supply (VCC) first, followed by the digital supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry.
  • To troubleshoot issues with the AD7386BCPZ-RL7, start by checking the power supply voltages, then check the input signals and the output signals. Use an oscilloscope to check for any noise or distortion in the signals. Also, check the device's temperature and ensure it is within the recommended operating range.
  • The recommended thermal management for the AD7386BCPZ-RL7 is to use a heat sink with a thermal conductivity of at least 1 W/m-K. Ensure good airflow around the device and avoid blocking the airflow. Also, ensure that the device is operated within the recommended temperature range.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7386BCPZ-RL7 Overview

Use the download button to access the AD7386BCPZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD738, or try a keyword search, such as Analog to Digital Converters
