The AD7401AYRWZ is a high-speed device, and proper layout and placement are crucial to minimize noise and ensure optimal performance. It is recommended to follow the guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources.
To handle high-frequency noise and EMI issues with the AD7401AYRWZ, it is recommended to use proper shielding, grounding, and filtering techniques. Additionally, using a low-pass filter or a ferrite bead on the power supply lines can help to reduce high-frequency noise. It is also important to follow proper PCB design and layout guidelines to minimize EMI radiation.
The recommended power-up sequence for the AD7401AYRWZ is to first apply the analog power supply (VCC) and then the digital power supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent damage or malfunction.
The AD7401AYRWZ does not require calibration, as it is a self-calibrating device. However, it is recommended to follow the guidelines provided in the datasheet for setting the gain and offset adjustments to achieve optimal performance and accuracy.
The maximum operating temperature range for the AD7401AYRWZ is -40°C to +125°C. Operating the device outside of this range can affect its performance, including reduced accuracy, increased noise, and decreased reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AD7401AYRWZ Overview

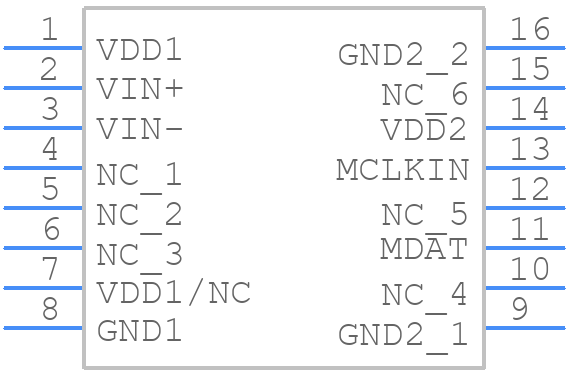

Use the download button to access the AD7401AYRWZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD740,
or try a keyword search, such as Analog to Digital Converters
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
