AD7417ARZ - Analog Devices

Description: 10-Bit Digital Temperature Sensor and Four Single-Channel ADCs

Download AD7417ARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

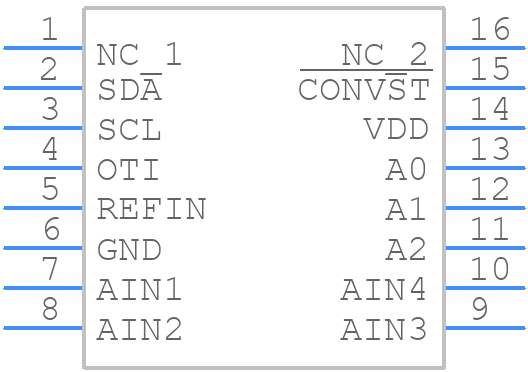

AD7417ARZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7417ARZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SOIC_N16
click to zoom
3D Models
AD7417ARZ - Analog Devices - 3D model - Small Outline Packages - SOIC_N16
click to zoom

AD7417ARZ Details

  • Manufacturer Part Number:

    AD7417ARZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    R-16

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.625 V

  • Conversion Time-Max:

    15 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    4

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    27 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

AD7417ARZ Frequently Asked Questions (FAQs)

  • The AD7417ARZ is a high-precision, high-frequency device, and as such, it requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to follow a star-grounding scheme, with the AD7417ARZ placed close to the analog power supply pins. Additionally, it is recommended to use a solid ground plane and to keep the analog and digital grounds separate.
  • The AD7417ARZ has an internal calibration circuit that allows for calibration of the device. To ensure proper calibration, it is recommended to follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the internal calibration registers accordingly. Additionally, the AD7417ARZ has a built-in temperature sensor that can be used to compensate for temperature effects.
  • The recommended power-up sequence for the AD7417ARZ is to first apply the analog power supply (VCC) and then the digital power supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent damage or malfunction.
  • The AD7417ARZ has a serial peripheral interface (SPI) that can be used to interface with a microcontroller or digital signal processor. The SPI interface allows for easy communication and control of the AD7417ARZ, and can be used to read data from the device, configure the device, and control the device's operating modes.
  • When using the AD7417ARZ, it is important to consider EMI and RFI shielding to prevent electromagnetic interference and radio-frequency interference. This can be achieved by using a shielded enclosure, using EMI-absorbing materials, and keeping the device away from sources of electromagnetic radiation.
