AD7417BRZ - Analog Devices

Description: AD7417BRZ, 10 bit ADC Serial, 16-Pin SOIC N, SOIC W

Download AD7417BRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

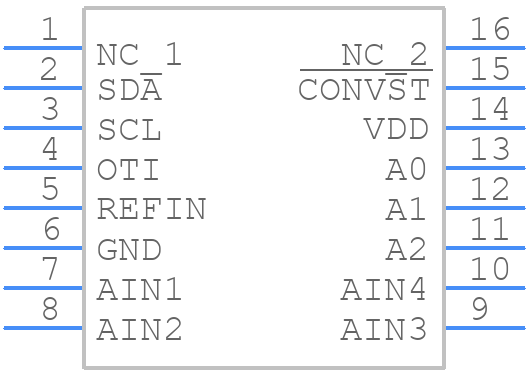

AD7417BRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7417BRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-16 (SOIC)
click to zoom
3D Models
AD7417BRZ - Analog Devices - 3D model - Small Outline Packages - R-16 (SOIC)
click to zoom

AD7417BRZ Details

  • Manufacturer Part Number:

    AD7417BRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    R-16

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.625 V

  • Conversion Time-Max:

    15 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    4

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    27 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

AD7417BRZ Frequently Asked Questions (FAQs)

  • The AD7417BRZ is a sensitive device and requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to place the device close to the analog signal source, use a solid ground plane, and keep the analog and digital traces separate. Additionally, it is recommended to use a 4-layer PCB with a dedicated analog ground plane and to avoid running digital traces under the device.
  • To ensure the accuracy of the temperature measurement, it is recommended to calibrate the device using a precision temperature source, such as a thermocouple or a platinum RTD. Additionally, it is important to ensure that the device is properly soldered and that the thermal interface material is applied correctly. It is also recommended to use a low-noise power supply and to minimize the noise on the analog input lines.
  • The AD7417BRZ is specified to operate from -40°C to +125°C, but it can be operated up to +150°C with reduced accuracy. However, it is recommended to operate the device within the specified temperature range for optimal performance and accuracy.
  • The AD7417BRZ can be interfaced with a microcontroller or FPGA using a standard SPI interface. The device requires a 3.3V or 5V power supply and a clock signal. The microcontroller or FPGA can be used to configure the device, read the temperature data, and control the device's operating mode.
  • The AD7417BRZ has a typical power consumption of 1.5mA at 3.3V and 2.5mA at 5V. The power consumption can be reduced by using the device's power-down mode, which reduces the current consumption to less than 1μA.
