AD7418ARMZ - Analog Devices

Description: AD7418ARMZ, 10 bit ADC Serial, 8-Pin MSOP

Download AD7418ARMZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

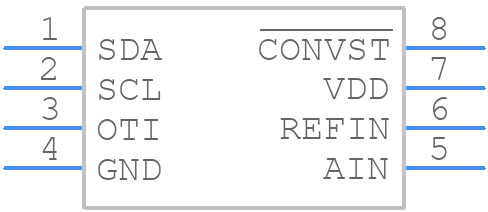

Symbol
AD7418ARMZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7418ARMZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RM-8)_S
click to zoom
3D Models
AD7418ARMZ - Analog Devices - 3D model - Small Outline Packages - (RM-8)_S
click to zoom

AD7418ARMZ Details

  • Manufacturer Part Number:

    AD7418ARMZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.625 V

  • Conversion Time-Max:

    15 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    27 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD7418ARMZ Frequently Asked Questions (FAQs)

  • The AD7418ARMZ is a sensitive device and requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to place the device close to the analog signal sources, use a solid ground plane, and keep the analog and digital signals separate. Additionally, it is recommended to use a 4-layer PCB with a dedicated analog ground plane and to avoid running digital signals under the device.
  • The AD7418ARMZ does not require calibration, as it is a calibrated device. However, it is recommended to perform a system-level calibration to ensure accurate temperature readings. This can be done by comparing the readings from the AD7418ARMZ with a known temperature reference source.
  • The maximum cable length for the AD7418ARMZ's digital interface depends on the specific application and the type of cable used. However, as a general guideline, it is recommended to keep the cable length as short as possible (less than 10 inches) to minimize signal degradation and ensure reliable communication.
  • The AD7418ARMZ is specified to operate from -40°C to +125°C, making it suitable for high-temperature applications. However, it is recommended to derate the device's performance at high temperatures and to ensure proper thermal management to prevent overheating.
  • To ensure EMC with the AD7418ARMZ, it is recommended to follow proper PCB design practices, such as using a solid ground plane, minimizing signal loop areas, and using shielding and filtering techniques to reduce electromagnetic interference (EMI). Additionally, it is recommended to follow the guidelines outlined in the AD7418ARMZ datasheet and application notes.
