AD74412RBCPZ-REEL - Analog Devices

Description: Quad-Channel, Software Configurable Input/Output

Download AD74412RBCPZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD74412RBCPZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints

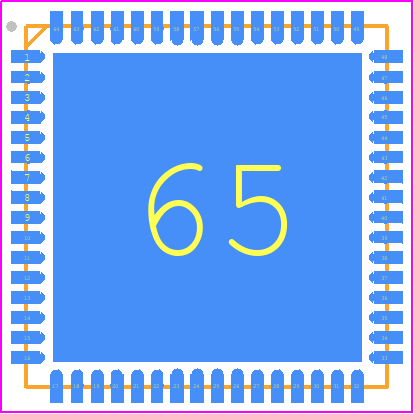

AD74412RBCPZ-REEL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP:LEADFRM CHIP SCALE_2023-5
click to zoom
3D Models
AD74412RBCPZ-REEL - Analog Devices - 3D model - Quad Flat No-Lead - LFCSP:LEADFRM CHIP SCALE_2023-5
click to zoom

AD74412RBCPZ-REEL Details

  • Manufacturer Part Number:

    AD74412RBCPZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-64

  • Pin Count:

    64

  • Manufacturer Package Code:

    CP-64-15

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-09-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N64

  • JESD-609 Code:

    e3

  • Length:

    9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    26.4 V

  • Supply Voltage-Min (Vsup):

    14 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    9 mm

AD74412RBCPZ-REEL Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout guide in the AD74412 datasheet, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The AD74412RBCPZ-REEL requires calibration for optimal performance. Analog Devices provides a calibration procedure in the datasheet, which involves adjusting the internal offset and gain registers to match the specific application requirements.
  • The AD74412RBCPZ-REEL is rated for operation from -40°C to +125°C, but the device's performance may degrade at extreme temperatures. It's essential to consult the datasheet for temperature-related specifications and derating guidelines.
  • The AD74412RBCPZ-REEL is not specifically designed for radiation-hardened or high-reliability applications. However, Analog Devices offers other products that are designed for such applications, and engineers should consult with Analog Devices' sales team or application engineers to determine the best solution for their specific requirements.
  • Analog Devices provides a troubleshooting guide in the AD74412 datasheet, which covers common issues and their potential causes. Engineers can also consult Analog Devices' application notes, FAQs, and support resources for additional guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD74412RBCPZ-REEL Overview

Use the download button to access the AD74412RBCPZ-REEL schematic symbol, PCB footprint, and 3D model.
