AD74412RBCPZ - Analog Devices

Description: Quad-Channel, Software Configurable Input/Output

Download AD74412RBCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD74412RBCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

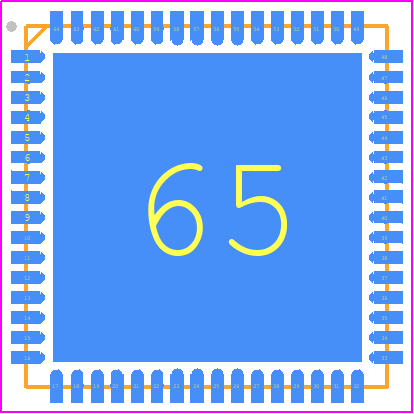

AD74412RBCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP:LEADFRM CHIP SCALE _2023
click to zoom
3D Models
AD74412RBCPZ - Analog Devices - 3D model - Quad Flat No-Lead - LFCSP:LEADFRM CHIP SCALE _2023
click to zoom

AD74412RBCPZ Details

  • Manufacturer Part Number:

    AD74412RBCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-64

  • Pin Count:

    64

  • Manufacturer Package Code:

    CP-64-15

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-09-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N64

  • JESD-609 Code:

    e3

  • Length:

    9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    26.4 V

  • Supply Voltage-Min (Vsup):

    14 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    9 mm

AD74412RBCPZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD74412RBCPZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The AD74412RBCPZ has an internal calibration circuit that is enabled by applying a voltage to the CAL pin. The calibration process involves shorting the CAL pin to the VDD pin, then connecting the input pins to a known voltage source. The device will then adjust its internal gain and offset to match the input voltage.
  • The maximum sampling rate of the AD74412RBCPZ is 1 MSPS (million samples per second). However, the actual sampling rate may be limited by the system's clock frequency and the device's power consumption.
  • The AD74412RBCPZ has a serial interface that can be connected to a microcontroller's SPI or I2C bus. The device's output data can be read by the microcontroller using a serial communication protocol. The microcontroller can also control the device's configuration and calibration using the serial interface.
  • The power consumption of the AD74412RBCPZ depends on the operating mode and the sampling rate. In normal operation, the device consumes around 15 mW of power. In power-down mode, the device consumes around 1 μW of power.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD74412RBCPZ Overview

Use the download button to access the AD74412RBCPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD744, or try a keyword search, such as Other Signal Circuits
