AD7490BCPZ-REEL7 - Analog Devices

Description: 16-Channel Single ADC SAR 1Msps 12-bit Serial 32-Pin LFCSP EP T/R

Download AD7490BCPZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

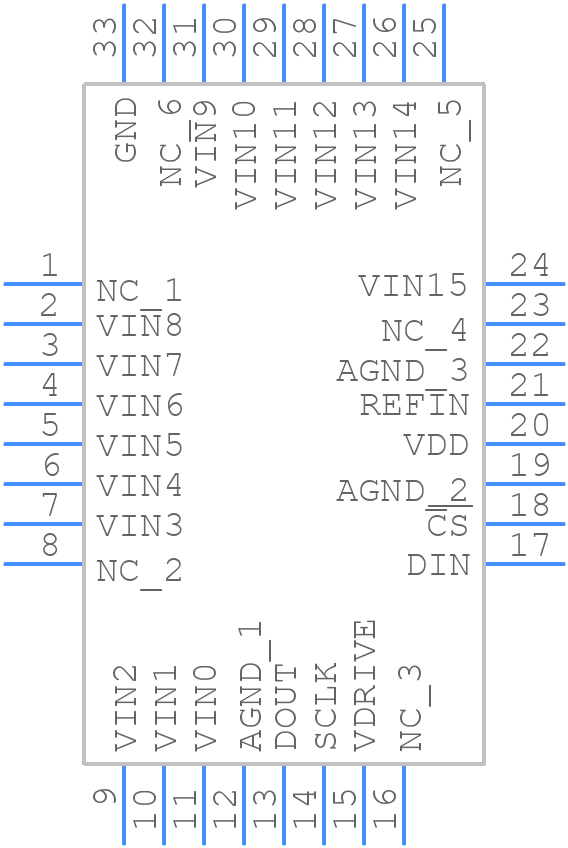

AD7490BCPZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7490BCPZ-REEL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-7
click to zoom
3D Models
AD7490BCPZ-REEL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-7
click to zoom

AD7490BCPZ-REEL7 Details

  • Manufacturer Part Number:

    AD7490BCPZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    VQCCN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-7

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5 V

  • Conversion Time-Max:

    0.8 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    16

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm
