AD7490BRUZ-REEL - Analog Devices

Description: 16-Channel Single ADC SAR 1Msps 12-bit Serial 28-Pin TSSOP T/R

Download AD7490BRUZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

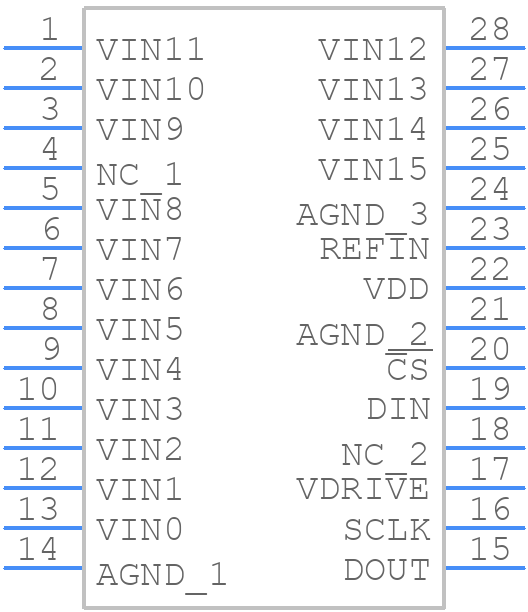

AD7490BRUZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7490BRUZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-28
click to zoom
3D Models
AD7490BRUZ-REEL - Analog Devices - 3D model - Small Outline Packages - RU-28
click to zoom

AD7490BRUZ-REEL Details

  • Manufacturer Part Number:

    AD7490BRUZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RU-28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5 V

  • Conversion Time-Max:

    0.8 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    16

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7490BRUZ-REEL Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Also, keep the ADC input pins away from the digital signals and use a low-pass filter to reduce noise.
  • The AD7490BRUZ-REEL does not require calibration. It has an internal calibration circuit that ensures accurate conversions. However, it's recommended to follow the recommended layout and routing practices to minimize noise and ensure optimal performance.
  • The maximum sampling rate of the AD7490BRUZ-REEL is 1 MSPS. The power consumption increases with the sampling rate, but the device is designed to operate at low power consumption even at high sampling rates.
  • The AD7490BRUZ-REEL outputs 16-bit parallel data. The output data is in twos complement format, and it's recommended to use a microcontroller or FPGA to handle the output data and perform any necessary processing.
  • The operating temperature range of the AD7490BRUZ-REEL is -40°C to 125°C. The device's performance may degrade at extreme temperatures, but it's designed to operate within the specified temperature range.
