AD7490BRUZ - Analog Devices

Description: AD7490BRUZ, 12-Bit Analogue to Digital Converter, SPI, Microwire, 28-Pin TSSOP

Download AD7490BRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

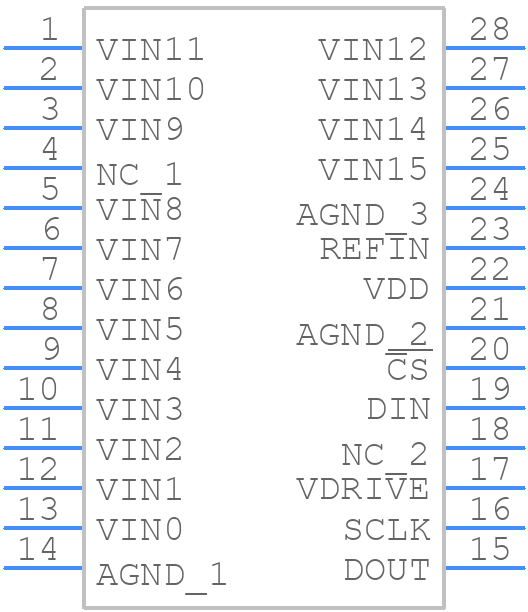

Symbol
AD7490BRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7490BRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - AD7490BRUZ
click to zoom
3D Models
AD7490BRUZ - Analog Devices - 3D model - Small Outline Packages - AD7490BRUZ
click to zoom

AD7490BRUZ Details

  • Manufacturer Part Number:

    AD7490BRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    28

  • Manufacturer Package Code:

    RU-28

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5 V

  • Conversion Time-Max:

    0.8 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    16

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7490BRUZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Also, place the AD7490BRUZ close to the analog signal sources and use short traces to minimize noise pickup.
  • The internal reference voltage of the AD7490BRUZ is 2.5V, but you can use an external reference voltage between 1.2V and 3.3V if needed. To use an external reference, connect the external reference voltage to the REF pin and ensure it is stable and noise-free.
  • The maximum sampling rate of the AD7490BRUZ is 1 MSPS. As the sampling rate increases, the power consumption also increases. To minimize power consumption, use the lowest sampling rate required for your application.
  • The AD7490BRUZ can be interfaced with a microcontroller or FPGA using a serial interface (SPI or I2C). Key considerations include ensuring the interface clock frequency is within the specified range, using a compatible voltage level, and handling the data transfer protocol correctly.
  • The AD7490BRUZ has a maximum junction temperature of 150°C. To ensure reliable operation, ensure good airflow, use a heat sink if necessary, and avoid blocking the airflow around the device.
