AD7490SRU-EP-RL7 - Analog Devices

Description: 12-Bit ADC

Download AD7490SRU-EP-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

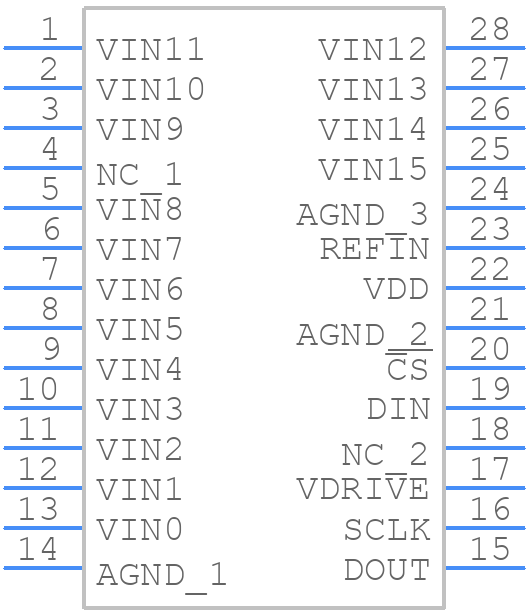

AD7490SRU-EP-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7490SRU-EP-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 28-Lead Thin Shrink Small Outline Package [TSSOP]
click to zoom
3D Models
AD7490SRU-EP-RL7 - Analog Devices - 3D model - Small Outline Packages - 28-Lead Thin Shrink Small Outline Package [TSSOP]
click to zoom

AD7490SRU-EP-RL7 Details

  • Manufacturer Part Number:

    AD7490SRU-EP-RL7

  • Source Url Status Check Date:

    2013-05-01 14:56:18.377

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    PLASTIC, MO-153AE, TSSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RU-28

  • ECCN Code:

    3A001.a.2.c

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    5 V

  • Conversion Time-Max:

    0.8 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    9.7 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Number of Analog In Channels:

    16

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    MILITARY

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

AD7490SRU-EP-RL7 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Also, use a low-ESR capacitor for the VDD pin and a 0.1uF capacitor for the AVDD pin. Refer to the ADI application note AN-931 for more details.
  • The AD7490SRU-EP-RL7 has an internal calibration circuit that calibrates the device during power-up. However, it's recommended to perform an external calibration using an external voltage reference and a calibration signal to ensure accurate conversions. Refer to the datasheet section on calibration for more details.
  • The AD7490SRU-EP-RL7 can achieve a maximum sampling rate of 1 MSPS (million samples per second) in normal mode and 500 kSPS in turbo mode. However, the actual sampling rate may vary depending on the system clock frequency, conversion mode, and other factors.
  • The AD7490SRU-EP-RL7 outputs 16-bit digital data in a 2's complement format. The data can be read using a microcontroller or an FPGA. The user needs to ensure proper synchronization and data alignment to avoid data corruption.
  • The AD7490SRU-EP-RL7 has a typical power consumption of 35 mW at 1 MSPS. To reduce power consumption, use the power-down mode, reduce the sampling rate, or use the shutdown mode when not in use. Additionally, use a low-power voltage regulator and optimize the system design to minimize power consumption.
