- Stock & Prices $ Price & Stock for AD7490WBCSZ
- Part Number AD7490WBCSZ
- Manufacturer Analog Devices
- Pin Count 33
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - (CS-32-3)
- Released Date Jun 23, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD7490WBCSZ Details
-
Manufacturer Part Number:
AD7490WBCSZ
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
LFCSP-32
-
Pin Count:
32
-
Manufacturer Package Code:
CS-32-3
-
HTS Code:
8542.39.00.30
-
Manufacturer:
Analog Devices Inc
-
YTEOL:
10
AD7490WBCSZ Frequently Asked Questions (FAQs)
-
A good layout and routing practice for the AD7490WBCSZ involves keeping the analog and digital sections separate, using a ground plane, and minimizing track lengths and widths to reduce noise and capacitance. It's also recommended to use a 4-layer PCB with a dedicated analog ground plane and to keep the analog and digital power supplies separate.
-
To optimize the AD7490WBCSZ's performance, you can adjust the clock frequency, conversion mode, and power-down modes to suit your specific application. For high-speed data acquisition, you can use the AD7490WBCSZ's burst mode and adjust the clock frequency to achieve the desired throughput. For low-power consumption, you can use the power-down modes and adjust the conversion rate to minimize power consumption.
-
The AD7490WBCSZ's internal reference voltage has a limited accuracy and temperature range. If you require a higher accuracy or a wider temperature range, you should use an external reference voltage. Additionally, if you're using the AD7490WBCSZ in a ratiometric configuration, you may need to use an external reference voltage to ensure accurate conversions.
-
The AD7490WBCSZ can be interfaced with a microcontroller or FPGA using a serial interface, such as SPI or I2C. The recommended communication protocol depends on the specific application and the requirements of the microcontroller or FPGA. In general, SPI is a good choice for high-speed applications, while I2C is suitable for lower-speed applications.
-
Common sources of error in the AD7490WBCSZ include noise, thermal drift, and nonlinearity. To minimize these errors, you can use techniques such as filtering, shielding, and thermal management. You can also use the AD7490WBCSZ's built-in error correction features, such as the cyclic redundancy check (CRC) and the error flag.
Trust Checks
Community Provided
System Verified
Community Approved
AD7490WBCSZ Overview

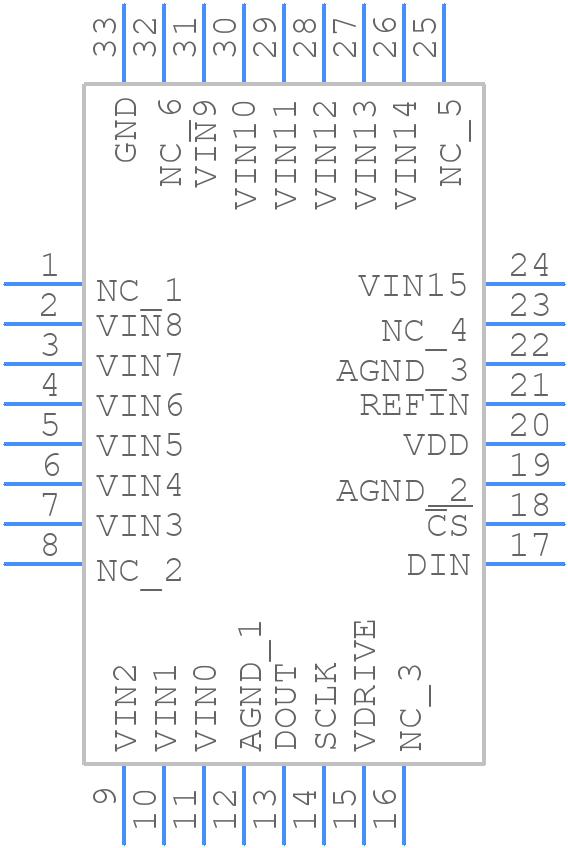

Use the download button to access the AD7490WBCSZ schematic symbol, PCB footprint, and 3D model.
