AD7492ARZ - Analog Devices

Description: AD7492ARZ, 12 bit ADC, Parallel, 24-Pin SOIC W

Download AD7492ARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

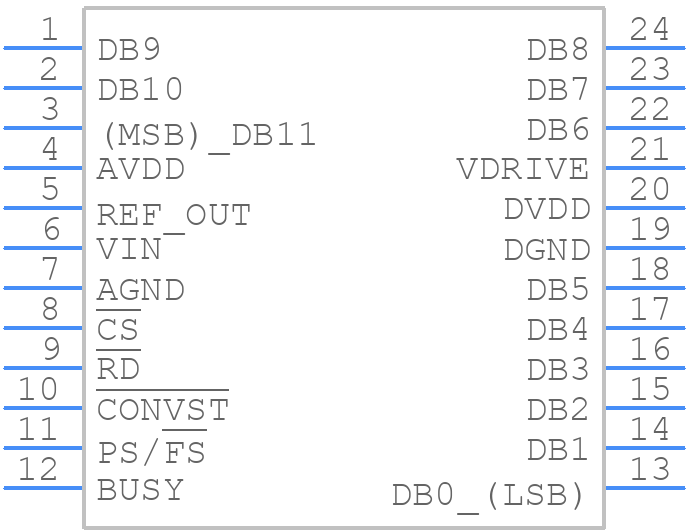

AD7492ARZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7492ARZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-24 (SOIC)
click to zoom
3D Models
AD7492ARZ - Analog Devices - 3D model - Small Outline Packages - RW-24 (SOIC)
click to zoom

AD7492ARZ Details

  • Manufacturer Part Number:

    AD7492ARZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    LEAD FREE, MS-013AD, SOIC-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RW-24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.5 V

  • Conversion Time-Max:

    0.88 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.4 mm

  • Linearity Error-Max (EL):

    0.0366%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    3.3 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

AD7492ARZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Also, place the AD7492ARZ close to the analog signal sources and keep the analog signal paths as short as possible.
  • The internal reference voltage of the AD7492ARZ is 2.5V, but it can be overridden by an external reference voltage. To use an external reference voltage, connect it to the REF pin and ensure it is within the recommended range of 2.4V to 5.5V.
  • The maximum sampling rate of the AD7492ARZ is 1 MSPS. The power consumption increases with the sampling rate, so it's essential to consider the trade-off between sampling rate and power consumption in your design.
  • The AD7492ARZ can be interfaced with a microcontroller or FPGA using the SPI interface. Key considerations for the interface include ensuring the correct clock polarity and phase, using a suitable clock frequency, and handling the data transfer correctly.
  • To minimize EMI and RFI, use a shielded enclosure, keep the AD7492ARZ away from high-frequency sources, use a ground plane, and ensure good decoupling and bypassing of the power supplies.
