AD7495ARZ-REEL7 - Analog Devices

Description: 1 MSPS, 12-Bit A/D Converter in MSOP-8 or SOIC-8

Download AD7495ARZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

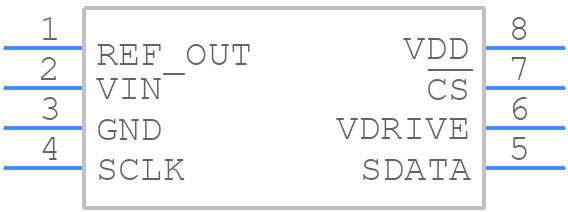

Symbol
AD7495ARZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7495ARZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-8_2022
click to zoom
3D Models
AD7495ARZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - R-8_2022
click to zoom

AD7495ARZ-REEL7 Details

  • Manufacturer Part Number:

    AD7495ARZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    2.5 V

  • Conversion Time-Max:

    0.8 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Linearity Error-Max (EL):

    0.0366%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    2.6 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

AD7495ARZ-REEL7 Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the AD7495ARZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane. The datasheet provides a recommended layout and routing diagram, and Analog Devices also provides a layout guide document that can be downloaded from their website.
  • The AD7495ARZ-REEL7 has an internal calibration circuit that can be used to calibrate the device. The calibration process involves writing a specific code to the calibration register, and then the device will perform a self-calibration routine. The datasheet provides a detailed description of the calibration process, and Analog Devices also provides a calibration guide document that can be downloaded from their website.
  • The maximum sampling rate of the AD7495ARZ-REEL7 is 1.5 MSPS (million samples per second). However, the actual sampling rate that can be achieved may be limited by the system's clock frequency, the conversion time, and the settling time of the analog input signal.
  • Yes, the AD7495ARZ-REEL7 can be used in a multi-channel application. The device has a serial interface that allows multiple devices to be connected to a single microcontroller or DSP. The datasheet provides a detailed description of the serial interface and how to use it in a multi-channel application.
  • The power consumption of the AD7495ARZ-REEL7 is typically around 15 mW at a supply voltage of 3.3 V. The power consumption can be reduced by using the device's power-down mode, which can be controlled through the serial interface. Additionally, the power consumption can be reduced by using a lower supply voltage, such as 2.5 V or 1.8 V.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7495ARZ-REEL7 Overview

Use the download button to access the AD7495ARZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD749, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
