AD7512DIKNZ - Analog Devices

Description: ANALOG SWITCHES

Download AD7512DIKNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

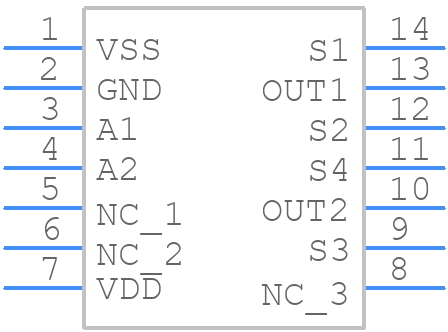

Symbol
AD7512DIKNZ - Analog Devices - PCB symbol
click to zoom

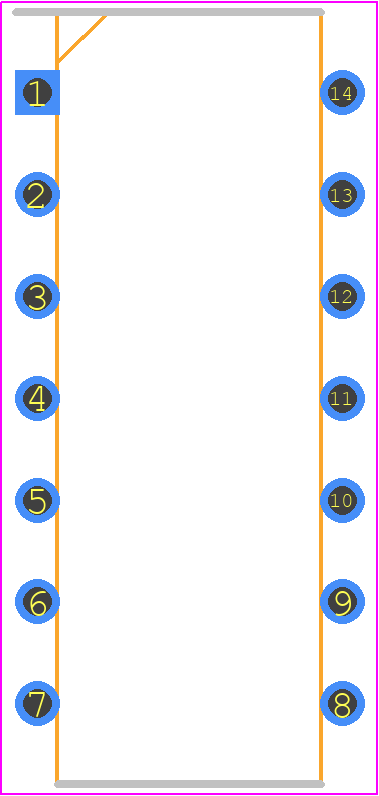

PCB Footprints
AD7512DIKNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 14 PIN DIP
click to zoom
3D Models
AD7512DIKNZ - Analog Devices - 3D model - Dual-In-Line Packages - 14 PIN DIP
click to zoom

AD7512DIKNZ Details

  • Manufacturer Part Number:

    AD7512DIKNZ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-14

  • Pin Count:

    14

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Additional Feature:

    OVERVOLTAGE PROTECTION

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    R-PDIP-T14

  • JESD-609 Code:

    e3

  • Length:

    19.05 mm

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Channels:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    14

  • On-state Resistance Match-Nom:

    0.75 Ω

  • On-state Resistance-Max (Ron):

    100 Ω

  • Operating Temperature-Max:

    70 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.32 mm

  • Signal Current-Max:

    0.05 A

  • Supply Current-Max (Isup):

    0.8 mA

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7512DIKNZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the input and output traces short and away from noise sources. Additionally, use a low-ESR capacitor for the VCC pin and a 0.1uF capacitor for the AVCC pin.
  • The AD7512DIKNZ requires a single 2.7V to 5.5V power supply. Ensure that the power supply is clean and well-regulated. Power sequencing is not critical, but it's recommended to power up the digital supply (VCC) before the analog supply (AVCC) to prevent unwanted current flows.
  • The AD7512DIKNZ can achieve a maximum data transfer rate of 1 Mbps in SPI mode and 400 kHz in I2C mode.
  • The AD7512DIKNZ has an internal oscillator that can be used as the clock source. The internal oscillator frequency is 1.024 MHz. Alternatively, an external clock source can be used, and the clock frequency can be set to 1 MHz, 2 MHz, or 4 MHz.
  • The gain and offset settings can be configured through the SPI or I2C interface. The gain can be set to 1, 2, or 4, and the offset can be set to 0, 1, or 2. The recommended method is to use the SPI or I2C interface to write the desired gain and offset settings to the device's registers.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7512DIKNZ Overview

Use the download button to access the AD7512DIKNZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD751, or try a keyword search, such as Multiplexers or Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
