- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AD7541AKR
- Part Number AD7541AKR
- Manufacturer Analog Devices
- Pin Count 18
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - RW-18 (SOIC)
- Released Date Mar 23, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD7541AKR Details
-
Manufacturer Part Number:
AD7541AKR
-
Source Url Status Check Date:
2013-05-01 14:56:18.875
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Package Description:
SOIC-18
-
Pin Count:
18
-
Manufacturer Package Code:
RW-18
-
HTS Code:
8542.39.00.40
-
Manufacturer:
Analog Devices Inc
AD7541AKR Frequently Asked Questions (FAQs)
-
The recommended power-up sequence is to apply VCC first, followed by VLOGIC, and then the digital inputs. This ensures that the internal logic is powered up before the analog circuitry.
-
To ensure accurate DAC output voltage levels, it is essential to use a low-impedance reference voltage source, such as a voltage reference IC, and to decouple the reference input pin with a capacitor to reduce noise.
-
The maximum clock frequency that can be used with the AD7541AKR is 50 MHz. However, the actual clock frequency may be limited by the specific application and the quality of the clock signal.
-
To handle the output voltage glitch during power-up or power-down, it is recommended to use an external output buffer or op-amp to filter out the glitch, or to use a power-up/power-down sequencing circuit to control the output voltage.
-
The AD7541AKR's performance is affected by temperature, with the DAC output voltage and current output accuracy varying with temperature. The device is specified to operate over a temperature range of -40°C to +125°C, and the user should consult the datasheet for specific temperature-related performance characteristics.
Trust Checks
Community Provided
System Verified
Community Approved
AD7541AKR Overview

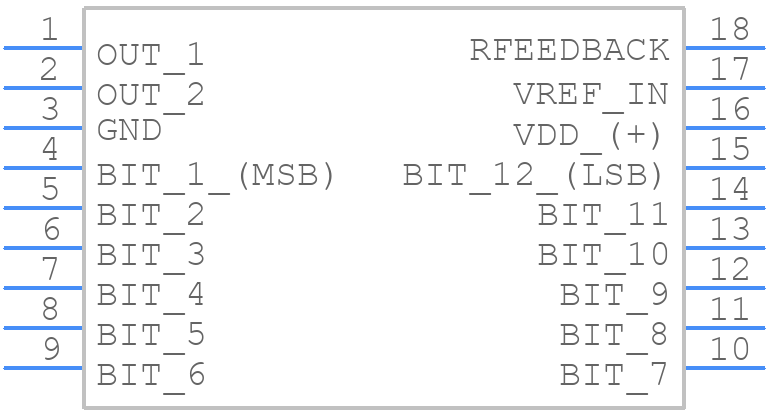

Use the download button to access the AD7541AKR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD754,
or try a keyword search, such as Digital to Analog Converters
