AD7541AKRZ - Analog Devices

Description: AD7541AKRZ, 12-Bit 12 Bit DAC Parallel, 18-Pin SOIC W

Download AD7541AKRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

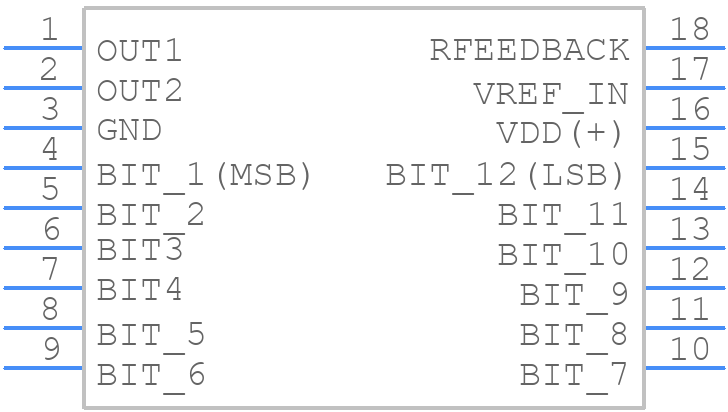

AD7541AKRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7541AKRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - AD7541AKRZ
click to zoom
3D Models
AD7541AKRZ - Analog Devices - 3D model - Small Outline Packages - AD7541AKRZ
click to zoom

AD7541AKRZ Details

  • Manufacturer Part Number:

    AD7541AKRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-18

  • Pin Count:

    18

  • Manufacturer Package Code:

    RW-18

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, OFFSET BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDSO-G18

  • JESD-609 Code:

    e3

  • Length:

    11.55 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP18,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Settling Time-Nom (tstl):

    0.6 µs

  • Supply Current-Max:

    2 mA

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

AD7541AKRZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VLOGIC, and then the digital inputs. This ensures that the internal voltage regulators are powered up correctly.
  • The AD7541AKRZ is specified to operate from -40°C to 125°C. Ensure that the device is properly heat-sinked and that the ambient temperature is within the specified range. Also, consider the thermal resistance of the package and the PCB layout to ensure that the junction temperature is within the specified range.
  • The AD7541AKRZ can sink or source up to 10mA of current per output pin. However, it's recommended to limit the output current to 5mA or less to ensure reliable operation and to prevent overheating.
  • To minimize power consumption, ensure that the device is in the power-down mode when not in use. Also, consider using a lower VLOGIC voltage, as this reduces the power consumption of the device. Additionally, minimize the number of active outputs and use the output disable feature to reduce power consumption.
  • To ensure reliable operation, it's recommended to follow a star-grounding layout, with the AD7541AKRZ at the center. Keep the analog and digital grounds separate, and use a solid ground plane to reduce noise and EMI. Also, keep the output traces short and away from noise sources.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7541AKRZ Overview

Use the download button to access the AD7541AKRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD754, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
