AD7564BRSZ - Analog Devices

Description: AD7564BRSZ, 12-Bit 12 Bit DAC Quad 1.8Msps, Serial, 28-Pin SSOP

Download AD7564BRSZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

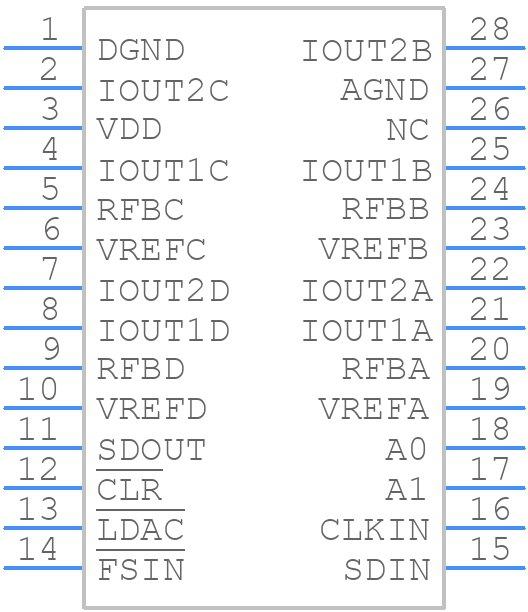

AD7564BRSZ - Analog Devices - PCB symbol
