AD7568BSZ - Analog Devices

Description: AD7568BSZ, 12 bit-Bit DAC 8-channel 2Msps, Serial, 44-Pin MQFP

Download AD7568BSZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

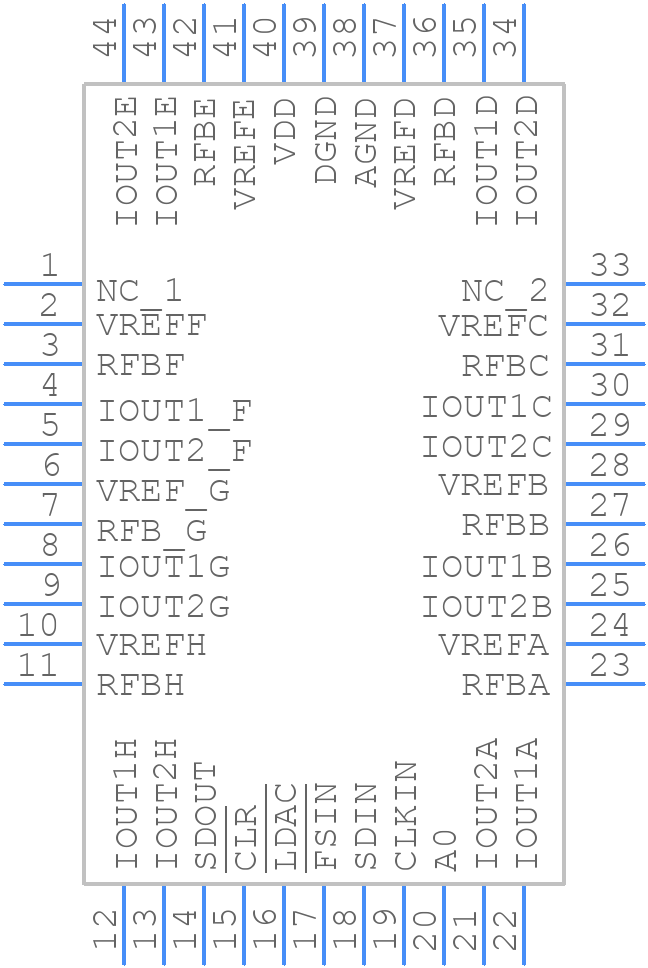

AD7568BSZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

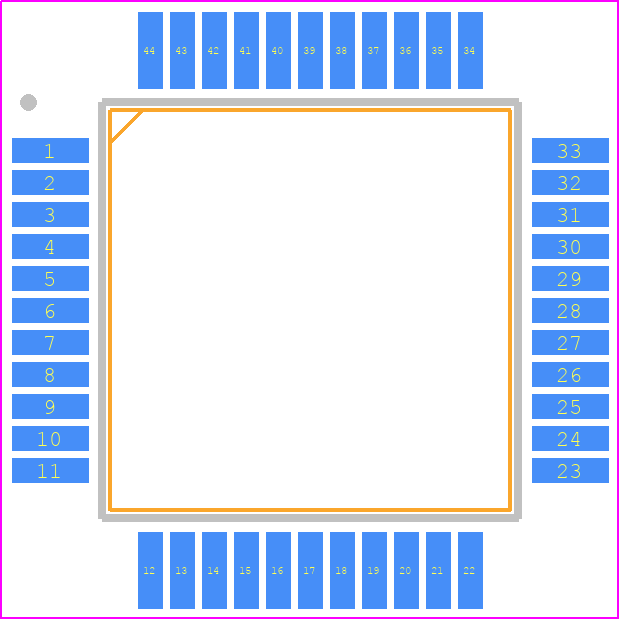

AD7568BSZ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - S-44-2 (MQFP)
click to zoom
3D Models
AD7568BSZ - Analog Devices - 3D model - Quad Flat Packages - S-44-2 (MQFP)
click to zoom

AD7568BSZ Details

  • Manufacturer Part Number:

    AD7568BSZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    PLASTIC, QFP-44

  • Pin Count:

    44

  • Manufacturer Package Code:

    S-44-2

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PQFP-G44

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    12

  • Number of Functions:

    8

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    QFP44,.57SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.45 mm

  • Settling Time-Nom (tstl):

    0.5 µs

  • Supply Current-Max:

    3.5 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Width:

    10 mm

AD7568BSZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signal traces separate. Also, place the AD7568BSZ close to the analog signal sources and keep the digital signals away from the analog signals.
  • The AD7568BSZ has an internal calibration circuit that can be used to calibrate the device. The calibration process involves applying a known input voltage and then reading the output code. The device can then be calibrated by adjusting the internal calibration registers.
  • The maximum sampling rate of the AD7568BSZ is 200 kSPS. The power consumption of the device increases with the sampling rate, so it's essential to consider the trade-off between sampling rate and power consumption in the system design.
  • If the input voltage exceeds the maximum rating of the AD7568BSZ, it's essential to use external protection circuitry, such as voltage limiters or clamp circuits, to prevent damage to the device.
  • The AD7568BSZ is specified to operate over a temperature range of -40°C to 125°C. The device's performance, such as offset and gain errors, may vary with temperature. It's essential to consider the temperature range of the application and the device's specifications when designing the system.
