AD7569BNZ - Analog Devices

Description: Analog Devices AD7569BNZ Analogue IO System, 8 bit, 4μs, 24-Pin PDIP

Download AD7569BNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

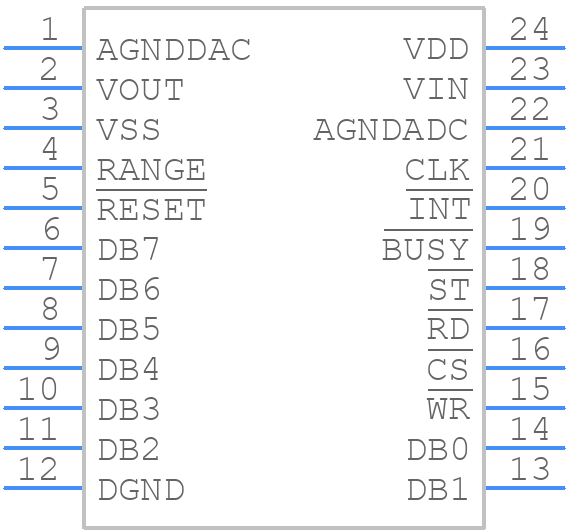

AD7569BNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7569BNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-24_2022
click to zoom
3D Models
AD7569BNZ - Analog Devices - 3D model - Dual-In-Line Packages - N-24_2022
click to zoom

AD7569BNZ Details

  • Manufacturer Part Number:

    AD7569BNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    DIP

  • Package Description:

    0.300 INCH, SKINNY, PLASTIC, DIP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    N-24-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDIP-T24

  • JESD-609 Code:

    e3

  • Length:

    30.485 mm

  • Neg Supply Voltage-Max (Vsup):

    -5.25 V

  • Neg Supply Voltage-Min (Vsup):

    -4.75 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max (Isup):

    13 mA

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7569BNZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a star-ground configuration, and keep the sensitive analog signals away from the digital signals. Also, use a solid ground plane and avoid vias under the device. Refer to the AD7569BNZ evaluation board layout as a reference.
  • For differential input mode, connect the positive input signal to the IN+ pin and the negative input signal to the IN- pin. For pseudo-differential input mode, connect the input signal to the IN+ pin and the reference voltage (e.g., GND or VREF) to the IN- pin. Ensure the input signals are within the specified common-mode voltage range.
  • The maximum sampling rate of the AD7569BNZ is 200 kSPS. However, the actual achievable sampling rate depends on the system clock frequency, conversion mode, and output data rate. Higher sampling rates increase power consumption, so it's essential to balance the sampling rate with power consumption requirements.
  • The internal VREF is enabled by default. To use an external reference voltage, connect the EXTREF pin to the desired reference voltage (1.2 V to 5 V) and ensure the internal VREF is disabled by setting the REFSEL pin to logic high. The external reference voltage should be stable and noise-free to ensure accurate conversions.
  • The AD7569BNZ offers 8-/16-bit parallel, SPI, and I2C output interfaces. Choose the output data format and interface based on the system requirements, such as data width, interface speed, and compatibility with the microcontroller or digital signal processor. Ensure the selected interface is properly configured and synchronized with the AD7569BNZ's clock and conversion modes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7569BNZ Overview

Use the download button to access the AD7569BNZ schematic symbol, PCB footprint, and 3D model.
