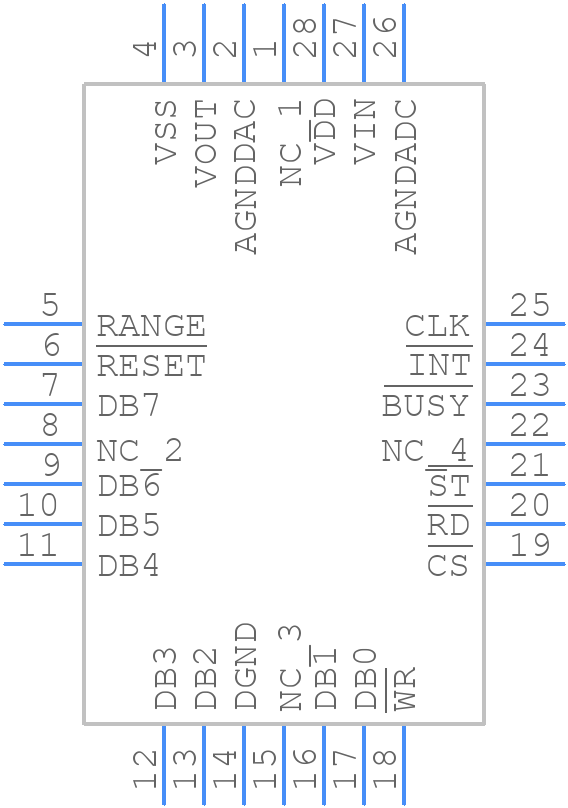

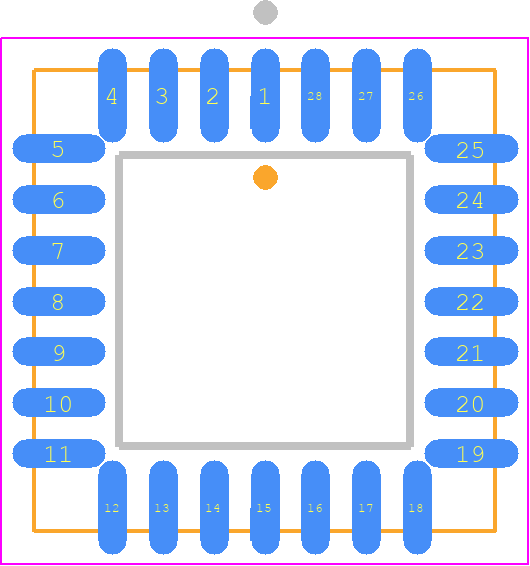

AD7569JPZ - Analog Devices

AD7569JPZ Details

• Manufacturer Part Number:

  AD7569JPZ

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

• Part Package Code:

  QLCC

• Package Description:

  PLASTIC, LCC-28

• Pin Count:

  28

• Manufacturer Package Code:

  P-28A

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  3

• Analog IC - Other Type:

  ANALOG CIRCUIT

• JESD-30 Code:

  S-PQCC-J28

• JESD-609 Code:

  e3

• Length:

  11.5062 mm

• Moisture Sensitivity Level:

  3

• Neg Supply Voltage-Max (Vsup):

  -5.25 V

• Neg Supply Voltage-Min (Vsup):

  -4.75 V

• Neg Supply Voltage-Nom (Vsup):

  -5 V

• Number of Functions:

  1

• Number of Terminals:

  28

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QCCJ

• Package Equivalence Code:

  LDCC28,.5SQ

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.57 mm

• Supply Current-Max (Isup):

  13 mA

• Supply Voltage-Max (Vsup):

  5.25 V

• Supply Voltage-Min (Vsup):

  4.75 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  J BEND

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  QUAD

• Width:

  11.5062 mm
