AD7569JRZ - Analog Devices

Description: AD7569JRZ, Data Acquisistion Circuit 8bit- 4µs 24-Pin SOIC W%0

Download AD7569JRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

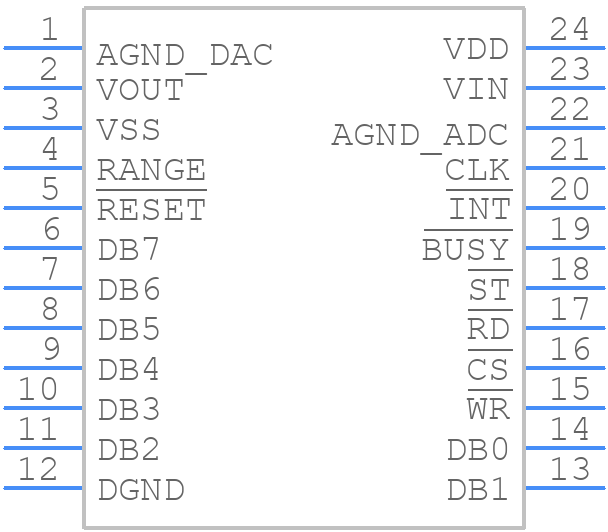

AD7569JRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7569JRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-24 (SOIC)
click to zoom
3D Models
AD7569JRZ - Analog Devices - 3D model - Small Outline Packages - RW-24 (SOIC)
click to zoom

AD7569JRZ Details

  • Manufacturer Part Number:

    AD7569JRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RW-24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.4 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -5.25 V

  • Neg Supply Voltage-Min (Vsup):

    -4.75 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max (Isup):

    13 mA

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

AD7569JRZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the AD7569JRZ involves separating analog and digital signals, using a solid ground plane, and keeping the analog input traces as short as possible. Additionally, it's recommended to use a low-ESR capacitor for the VREF pin and to decouple the power supplies with a 10uF capacitor.
  • The AD7569JRZ has an internal calibration circuit that can be enabled by setting the CAL bit in the control register. The device can be calibrated by applying a known voltage to the input pins and then reading the resulting digital code. The calibration data can then be stored in an external EEPROM or flash memory for future use.
  • The maximum sampling rate of the AD7569JRZ is 200 kSPS. The power consumption of the device increases with the sampling rate, so it's recommended to use the lowest sampling rate necessary for the application to minimize power consumption. The power consumption can be estimated using the formula: Power (mW) = (VCC x ICC) + (Sampling Rate x Dynamic Power).
  • The AD7569JRZ has an internal overvoltage protection circuit that prevents damage to the device in case of an overvoltage condition. However, it's still recommended to use external protection circuits such as voltage limiters or zener diodes to protect the device from overvoltage conditions. For undervoltage conditions, the device has a power-on reset circuit that resets the device when the supply voltage falls below a certain threshold.
  • The recommended operating temperature range for the AD7569JRZ is -40°C to +125°C. The device's performance may be affected by temperature variations, with the conversion accuracy and linearity degrading at higher temperatures. It's recommended to use the device within the specified temperature range and to consider temperature compensation techniques if the application requires high accuracy over a wide temperature range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7569JRZ Overview

Use the download button to access the AD7569JRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD756, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
