AD7579JNZ - Analog Devices

Description: Analog Devices AD7579JNZ, 10 bit Parallel ADC,, 24-Pin PDIP

Download AD7579JNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

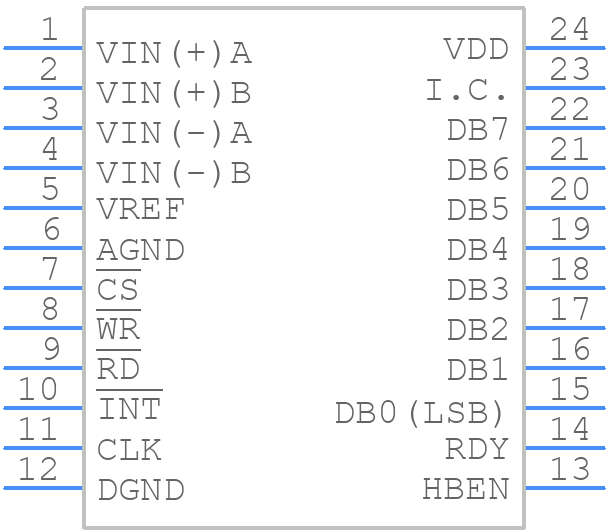

AD7579JNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7579JNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-24
click to zoom
3D Models
AD7579JNZ - Analog Devices - 3D model - Dual-In-Line Packages - N-24
click to zoom

AD7579JNZ Details

  • Manufacturer Part Number:

    AD7579JNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    DIP

  • Package Description:

    0.300 INCH, SKINNY, PLASTIC, DIP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    N-24-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Analog Input Voltage-Max:

    7.3 V

  • Analog Input Voltage-Min:

    -0.3 V

  • Conversion Time-Max:

    18.5 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDIP-T24

  • JESD-609 Code:

    e3

  • Length:

    30.45 mm

  • Linearity Error-Max (EL):

    0.39%

  • Number of Analog In Channels:

    2

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, 8 BITS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.05 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7579JNZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to power up the digital supply (VDD) first, followed by the analog supply (VCC). This ensures that the internal voltage regulators are powered up correctly.
  • To optimize performance in noisy environments, use a low-pass filter on the analog input pins, keep the analog and digital grounds separate, and use a decoupling capacitor on the VCC pin. Additionally, consider using a shielded enclosure and keeping the AD7579JNZ away from high-frequency sources.
  • The maximum sampling rate of the AD7579JNZ is 125 kSPS. However, this rate can be affected by the conversion mode, input range, and other factors. Refer to the datasheet for more information on the sampling rate vs. conversion mode.
  • Yes, the AD7579JNZ can be used with an external reference voltage. The external reference voltage should be connected to the REFIN pin, and the internal reference voltage should be disabled by setting the REFSEL bit in the control register to 1.
  • The AD7579JNZ has internal overvoltage protection on the analog input pins. However, it is still recommended to use external protection circuitry, such as voltage-limiting resistors or diodes, to prevent damage to the device in case of overvoltage conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7579JNZ Overview

Use the download button to access the AD7579JNZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD757, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
