AD7582KNZ - Analog Devices

Description: Successive Approximation ADC

Download AD7582KNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

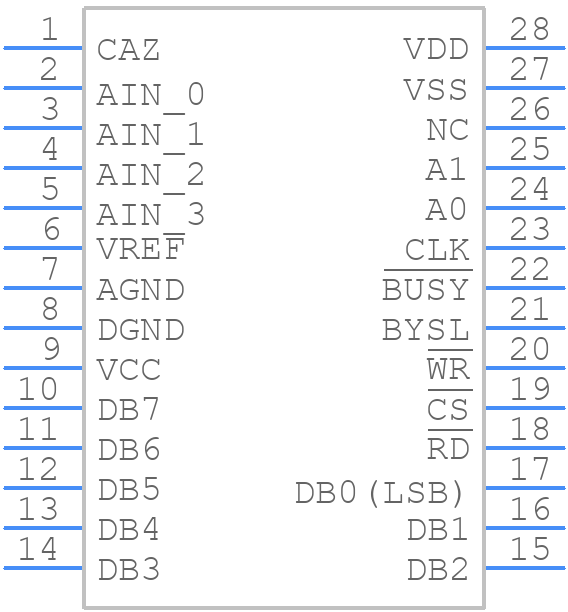

AD7582KNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

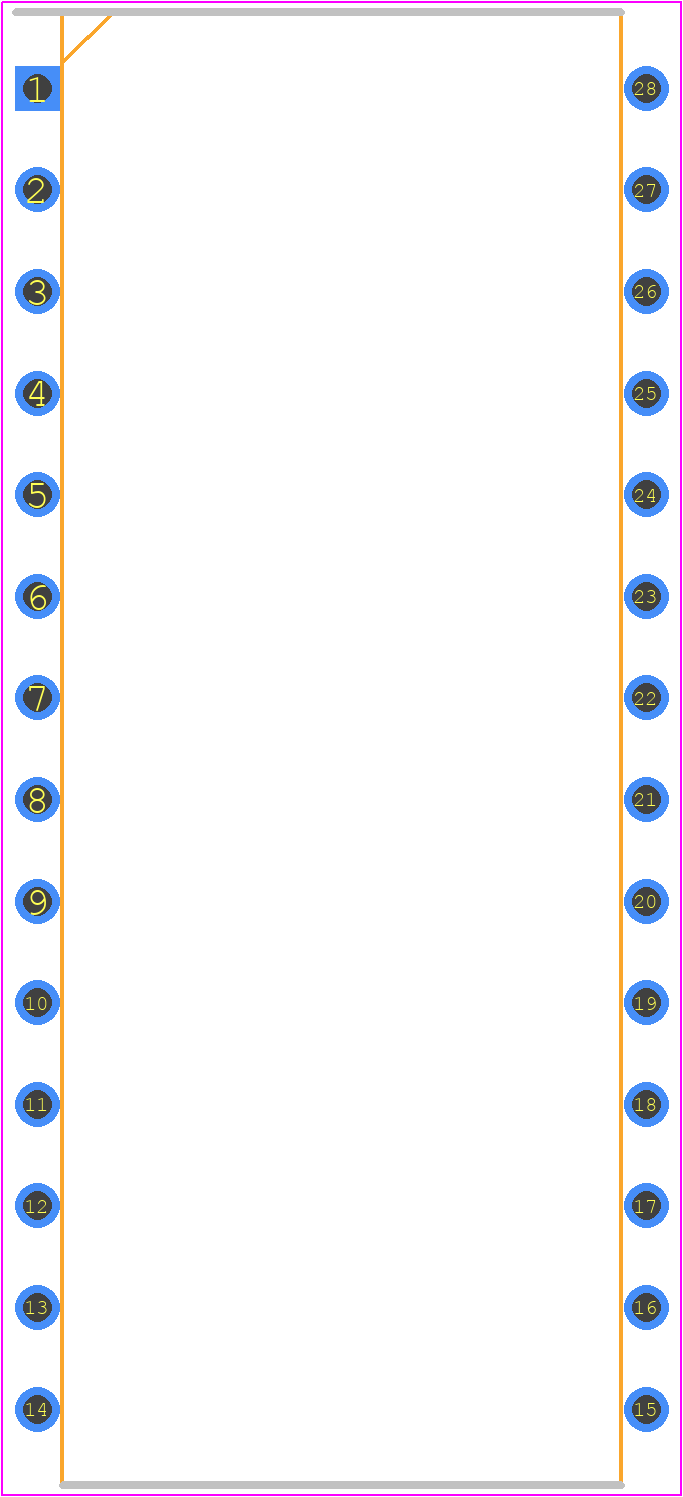

AD7582KNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - AD7874ANZ
click to zoom
3D Models
AD7582KNZ - Analog Devices - 3D model - Dual-In-Line Packages - AD7874ANZ
click to zoom

AD7582KNZ Details

  • Manufacturer Part Number:

    AD7582KNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    N-28-2

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Analog Input Voltage-Max:

    5 V

  • Conversion Time-Max:

    100 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDIP-T28

  • JESD-609 Code:

    e3

  • Length:

    36.703 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Analog In Channels:

    4

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, 8 BITS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP28,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    15.24 mm

AD7582KNZ Frequently Asked Questions (FAQs)

  • It is recommended to place the AD7582KNZ close to the analog signal source, use a ground plane, and keep the analog and digital grounds separate. Additionally, use a low-ESR capacitor for decoupling and place it as close to the device as possible.
  • The AD7582KNZ has an internal calibration circuit. To ensure proper calibration, follow the calibration procedure outlined in the datasheet, and make sure the device is powered up and in a stable state before taking measurements.
  • The maximum sampling rate of the AD7582KNZ is 250 kSPS. However, the power consumption increases with the sampling rate. To minimize power consumption, use the lowest sampling rate required for your application.
  • The AD7582KNZ has a serial digital output. Use a serial interface such as SPI or I2C to connect to a microcontroller or FPGA. Ensure proper synchronization and data formatting according to the interface protocol.
  • Use a low-ESR capacitor (e.g., 10 μF) for decoupling, and consider adding a ferrite bead or a pi-filter to reduce high-frequency noise. Ensure the power supply voltage is within the recommended range (2.7 V to 5.5 V).

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

AD7582KNZ Overview

Use the download button to access the AD7582KNZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD758, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
