AD7612BSTZ - Analog Devices

Description: Analog to Digital Converters - ADC 16-BT Bipolar Pulsar ADC, 1000KSPS I.C.

Download AD7612BSTZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

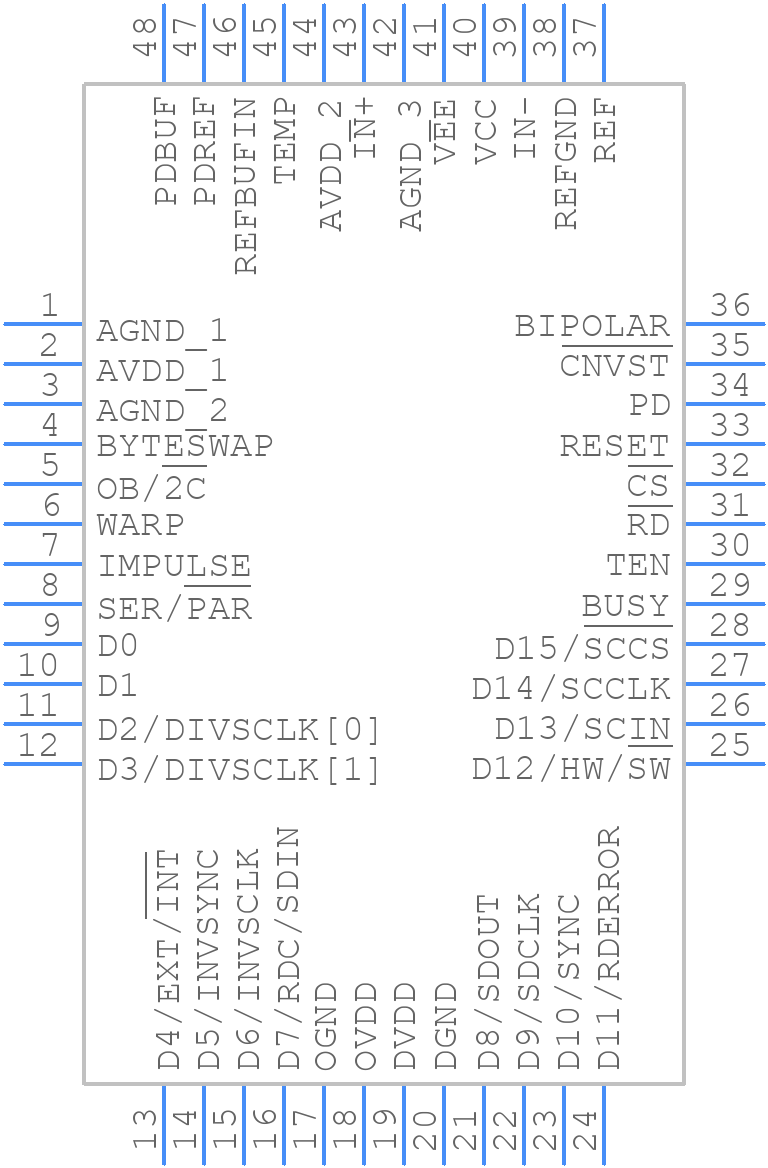

AD7612BSTZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7612BSTZ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - ST-48 (LQFP)
click to zoom
3D Models
AD7612BSTZ - Analog Devices - 3D model - Quad Flat Packages - ST-48 (LQFP)
click to zoom

AD7612BSTZ Details

  • Manufacturer Part Number:

    AD7612BSTZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    ROHS COMPLIANT, MS-026BBC, LQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    ST-48

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    10.1 V

  • Analog Input Voltage-Min:

    -10.1 V

  • Conversion Time-Max:

    1.45 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.0023%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2'S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, 8 BITS, PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.75 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

AD7612BSTZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Also, use a low-ESR capacitor for the AVDD and DVDD pins, and keep the decoupling capacitors close to the pins.
  • To optimize the AD7612BSTZ's performance, you need to consider factors such as the input signal frequency, amplitude, and impedance, as well as the desired output data rate and resolution. You may need to adjust the gain, offset, and filtering to suit your specific application.
  • The maximum sampling rate of the AD7612BSTZ is 1 MSPS. However, the power consumption increases with the sampling rate. At 1 MSPS, the typical power consumption is around 35 mW. You can reduce the power consumption by reducing the sampling rate or using the device's power-down mode.
  • The AD7612BSTZ's digital output data is in a 16-bit, two's complement format. You can handle the output data using a microcontroller or FPGA, and you may need to perform additional processing such as filtering, scaling, and formatting depending on your application.
  • The AD7612BSTZ's analog input impedance is around 1 kΩ. This relatively low impedance can affect the input signal, especially if the source impedance is high. You may need to add a buffer amplifier or an impedance-matching network to ensure a proper signal transfer.
